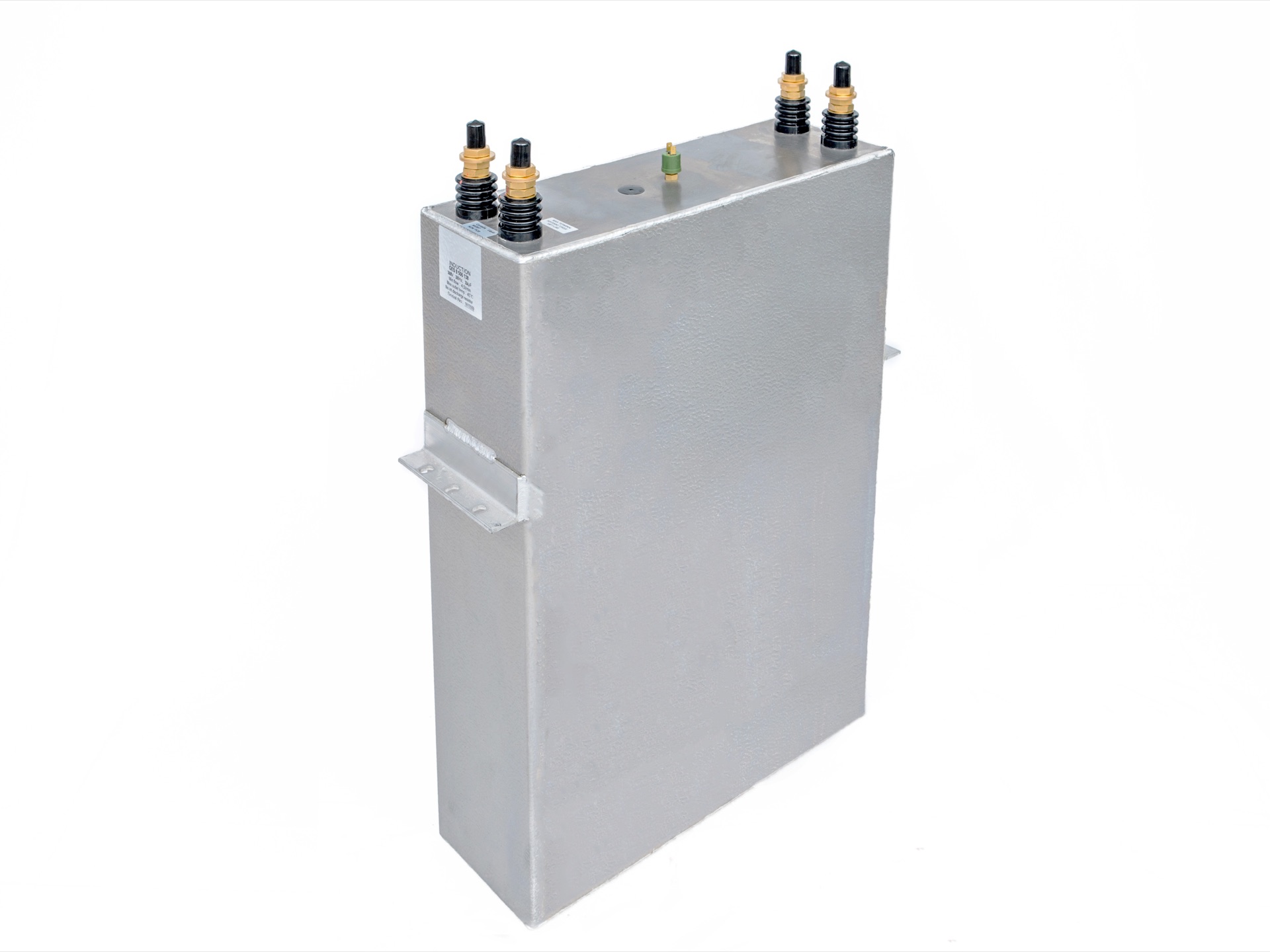

Double-Circuit Water-Cooled Induction Heating Capacitors — product photo 2

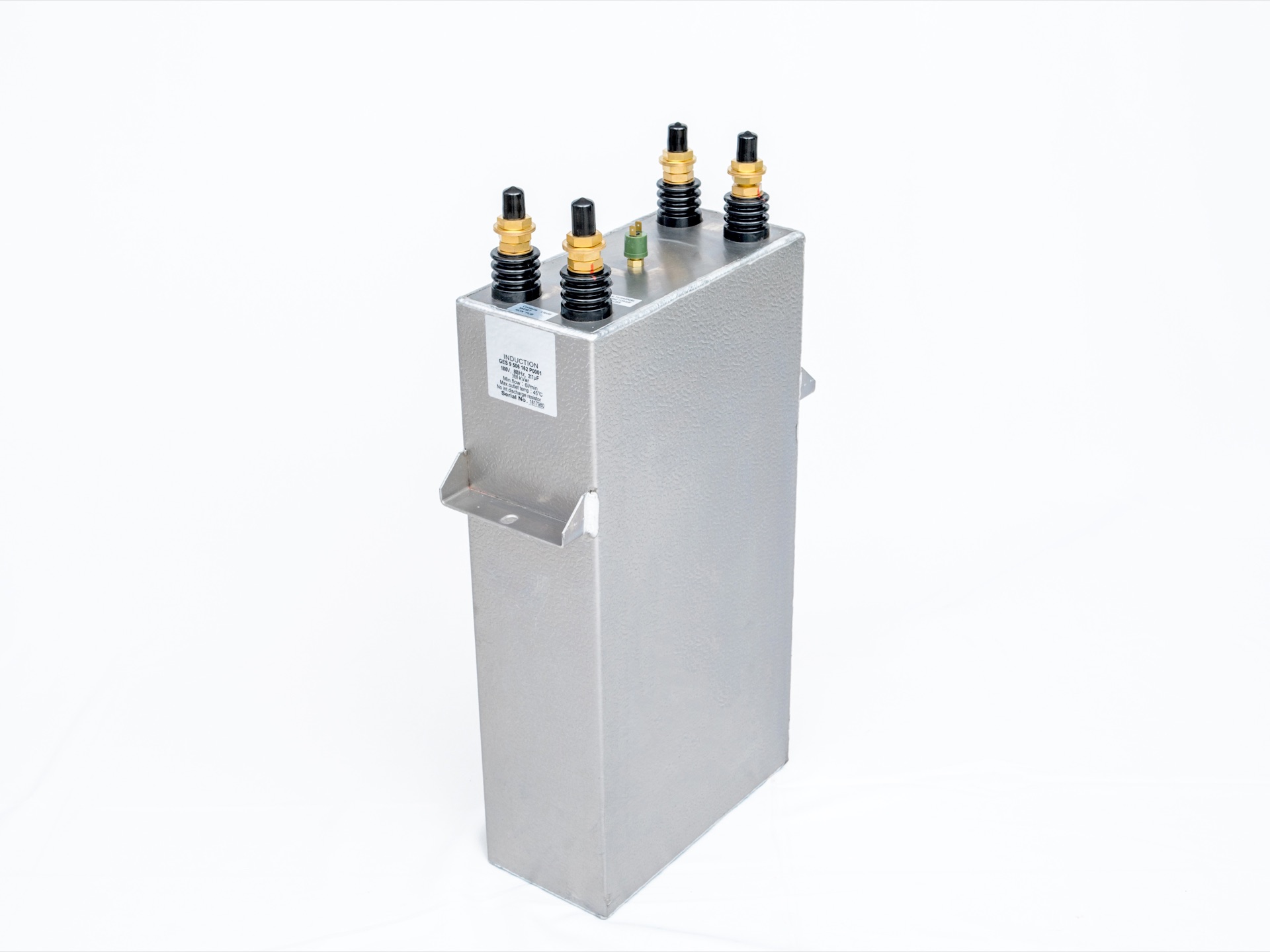

Double-Circuit Water-Cooled Induction Heating Capacitors — product photo 3

Induction Heating

Double-Circuit Water-Cooled Induction Heating Capacitors

High-power resonant capacitors with dual independent water cooling channels for significantly enhanced heat removal, engineered for sustained high-thermal-load operation — suitable for large induction melting furnaces, heavy-duty forging, and high-capacity continuous production lines.

Applications

Large induction melting furnaces
Heavy-duty forging
Foundry production lines
High-power continuous melting

Technical Specifications

Parameter	Value
Rated Voltage (Un)	0.6–6.3 kV
Reactive Power (Qn)	500–13400 kvar
Frequency (Fn)	150–1500 Hz
Rated Current (In)	≤ 4470 A
Cooling Method	Water cooled (dual independent circuits)
Standards	GB/T 3984 · IEC 60110

Product Models

№	TYPE	Un (V)	Qn (kVAR)	Fn (Hz)	In (A)	Cn (μF)	L (mm)	W (mm)	H (mm)	GROUPS
1	RAM0.6-500-0.25S	600	500	250	833	884.19	343	175	545	1	Enquire
2	RAM0.6-850-1S	600	850	1000	1417	375.78	343	175	400	1	Enquire
3	RAM0.65-2000-0.3S	650	2000	300	3077	2511.32	559	203	711	1	Enquire
4	RAM0.75-2000-1S	750	2000	1000	2667	565.88	343	175	400	1	Enquire
5	RAM1.0-800-0.25S	1000	800	250	800	509.3	440	191	780	1	Enquire
6	RAM1.0-1500-0.3S	1000	1500	300	1500	795.77	559	175	500	1	Enquire
7	RAM1.2-3000-0.7S	1200	3000	700	2500	473.68	343	175	580	1	Enquire
8	RAM1.2-2000-1S	1200	2000	1000	1667	221.05	343	175	300	1	Enquire
9	RAM1.2-1200-1.2S	1200	1200	1200	1000	110.52	343	150	270	1	Enquire
10	RAM1.5-1600-0.15S	1500	1600	150	1067	754.51	559	203	590	1	Enquire
11	RAM1.5-3000-0.5S	1500	3000	500	2000	424.41	343	175	545	1	Enquire
12	RAM1.6-3500-0.5S	1600	3500	500	2188	435.19	343	175	615	1	Enquire
13	RAM1.6-3820-0.7S	1600	3820	700	2388	339.27	343	203	500	1	Enquire
14	RAM1.7-3000-0.3S	1600	3000	300	1875	621.7	343	205	690	1	Enquire
15	RAM1.7-3000-0.5S	1600	3000	500	1875	373.02	343	175	500	1	Enquire
16	RAM1.7-4000-1S	1700	4000	1000	2353	220.28	343	175	615	1	Enquire
17	RAM1.8-4000-0.25S	1800	4000	250	2222	785.95	440	230	830	1	Enquire
18	RAM1.8-4000-0.5S	1800	4000	500	2222	392.98	343	175	650	1	Enquire
19	RAM1.8-2000-1S	1800	2000	1000	1111	98.24	343	150	360	1	Enquire
20	RAM1.8-3000-1S	1800	3000	1000	1667	147.37	343	175	435	1	Enquire
21	RAM2.4-2000-0.7S	2400	2000	700	833	78.95	343	175	300	1	Enquire
22	RAM2.4-3000-0.7S	2400	3000	700	1250	118.42	343	175	435	1	Enquire
23	RAM2.5-3000-0.15S	2500	3000	150	1200	509.3	559	203	787	1	Enquire
24	RAM2.5-6000-1S	2500	6000	1000	2400	152.79	559	175	400	1	Enquire
25	RAM2.5-4850-1.5S	2500	4850	1500	1940	82.34	343	175	360	1	Enquire
26	RAM2.8-5000-0.3S	2800	5000	300	1786	338.34	559	203	711	1	Enquire
27	RAM2.8-5000-0.4S	2800	5000	400	1786	253.75	559	203	590	1	Enquire
28	RAM2.8-6666-0.5S	2800	6666	500	2381	270.64	559	203	590	1	Enquire
29	RAM2.9-5000-0.3S	2900	5000	300	1724	315.41	559	203	711	1	Enquire
30	RAM3.0-3000-0.3S	3000	3000	300	1000	176.84	343	175	760	1	Enquire
31	RAM3.0-6000-0.5S	3000	6000	500	2000	212.21	559	175	590	1	Enquire
32	RAM3.0-7000-1S	3000	7000	1000	2333	123.79	559	175	450	1	Enquire
33	RAM3.0-13400-1.2S	3000	13400	1200	4467	197.47	559	203	711	1	Enquire
34	RAM3.05-5450-0.7S	3050	5450	700	1787	133.2	559	175	590	1	Enquire
35	RAM3.05-7500-0.7S	3050	7500	700	2459	183.31	559	175	711	1	Enquire
36	RAM3.2-5000-0.3S	3200	5000	300	1563	259.04	559	203	711	1	Enquire
37	RAM3.2-3000-0.5S	3200	3000	500	938	93.25	559	150	460	1	Enquire
38	RAM3.5-6000-0.5S	3500	6000	500	1714	155.91	559	203	590	1	Enquire
39	RAM3.5-3000-1S	3500	3000	1000	857	38.98	343	175	400	1	Enquire
40	RAM4.0-8333-0.5S	4000	8333	500	2083	165.78	559	203	711	1	Enquire
41	RAM4.0-5416-0.65S	4000	5416	650	1354	82.88	343	175	690	1	Enquire
42	RAM4.2-5000-0.4S	4200	5000	400	1190	112.78	559	203	590	1	Enquire
43	RAM4.4-8470-0.7S	4400	8470	700	1925	99.47	559	175	690	1	Enquire
44	RAM4.6-5350-0.3S	4600	5350	300	1163	134.13	559	203	787	1	Enquire
45	RAM5.2-3000-0.15S	5200	3000	150	577	117.72	559	203	787	1	Enquire
46	RAM6.3-3000-0.15S	6300	3000	150	476	80.2	559	203	787	1	Enquire

Un (V) — Rated VoltageQn (kVAR) — Reactive PowerFn (Hz) — FrequencyIn (A) — Rated CurrentCn (μF) — Nominal CapacitanceL (mm) — WidthW (mm) — ThicknessH (mm) — Height
