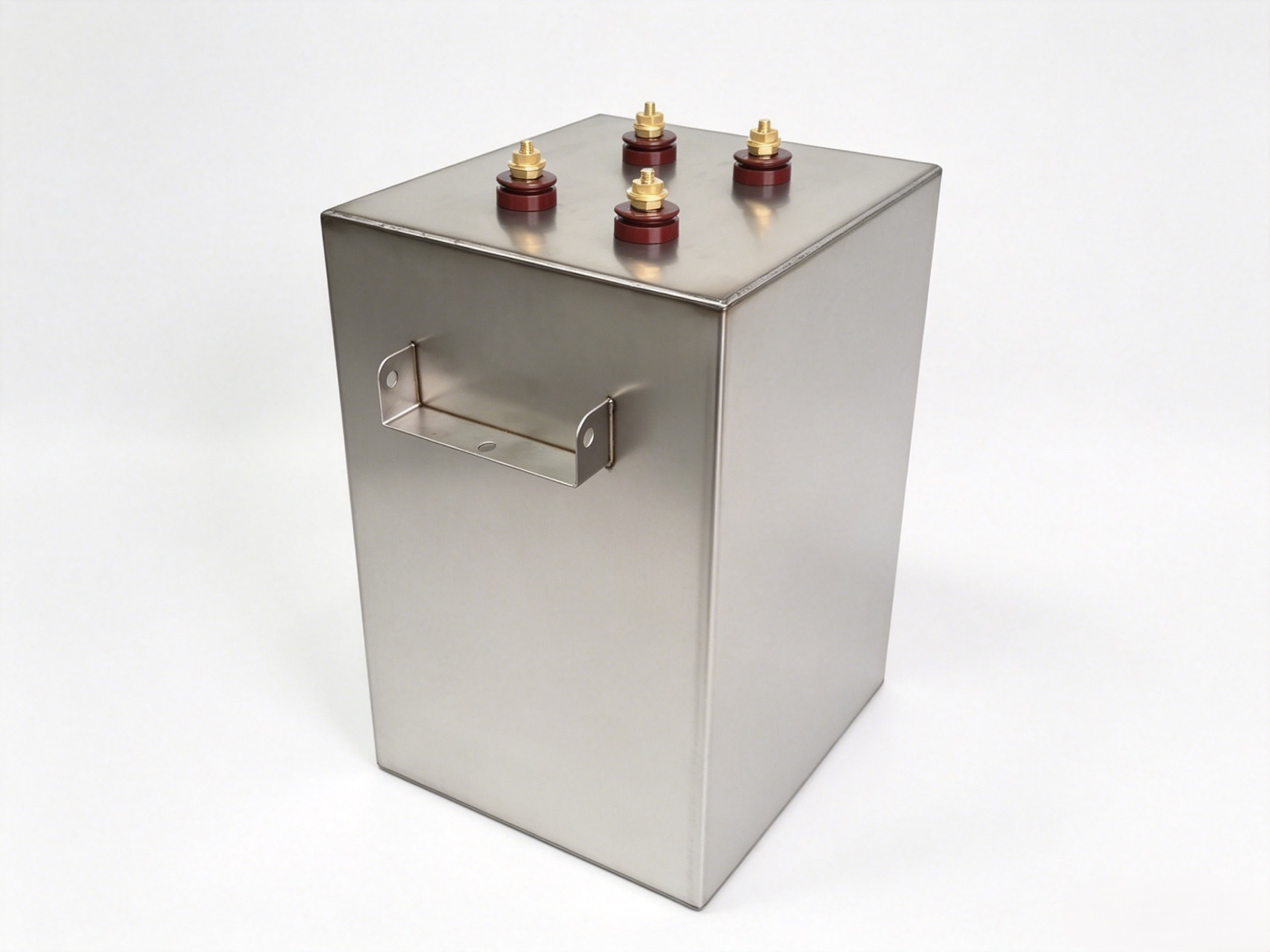

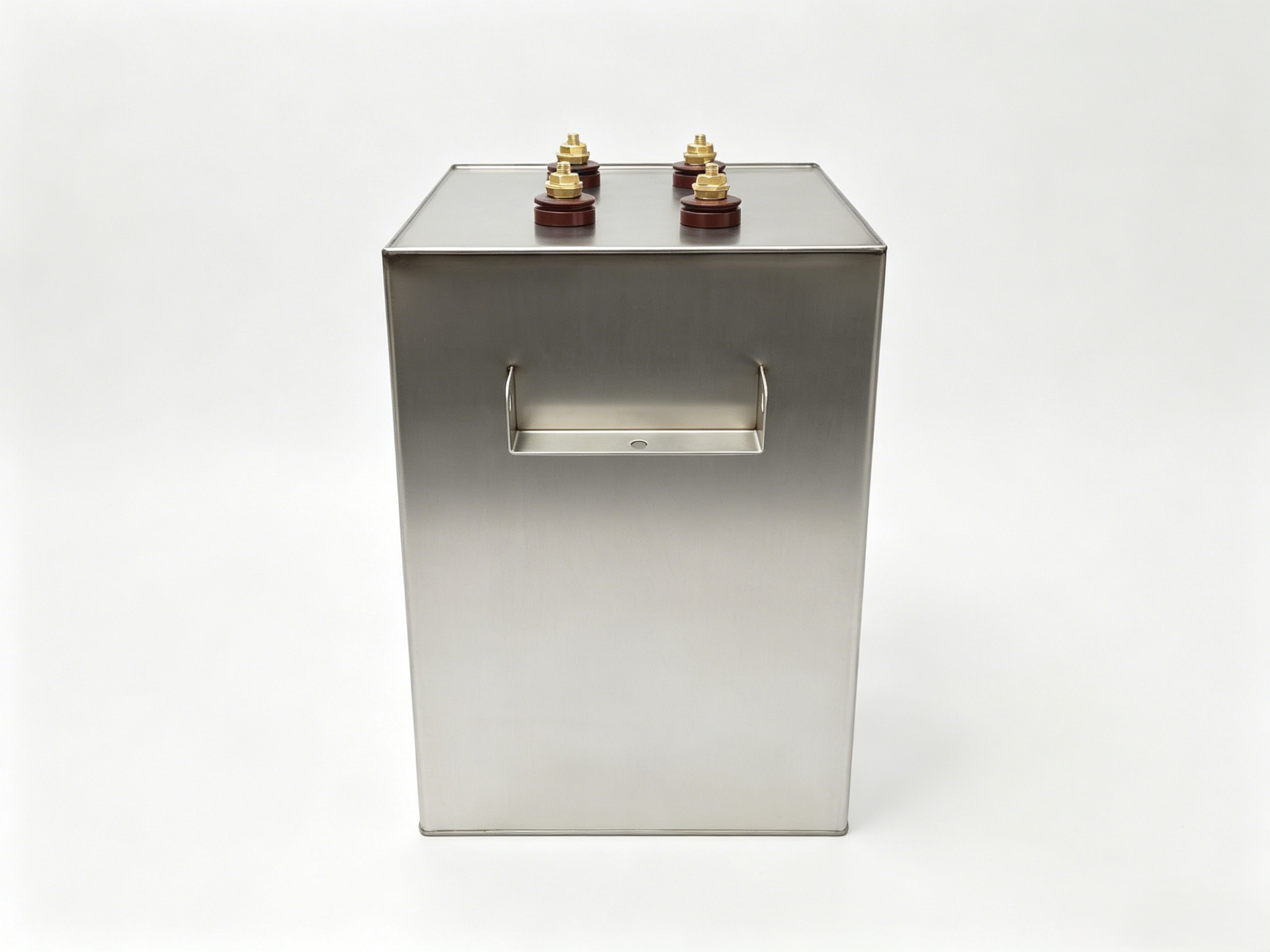

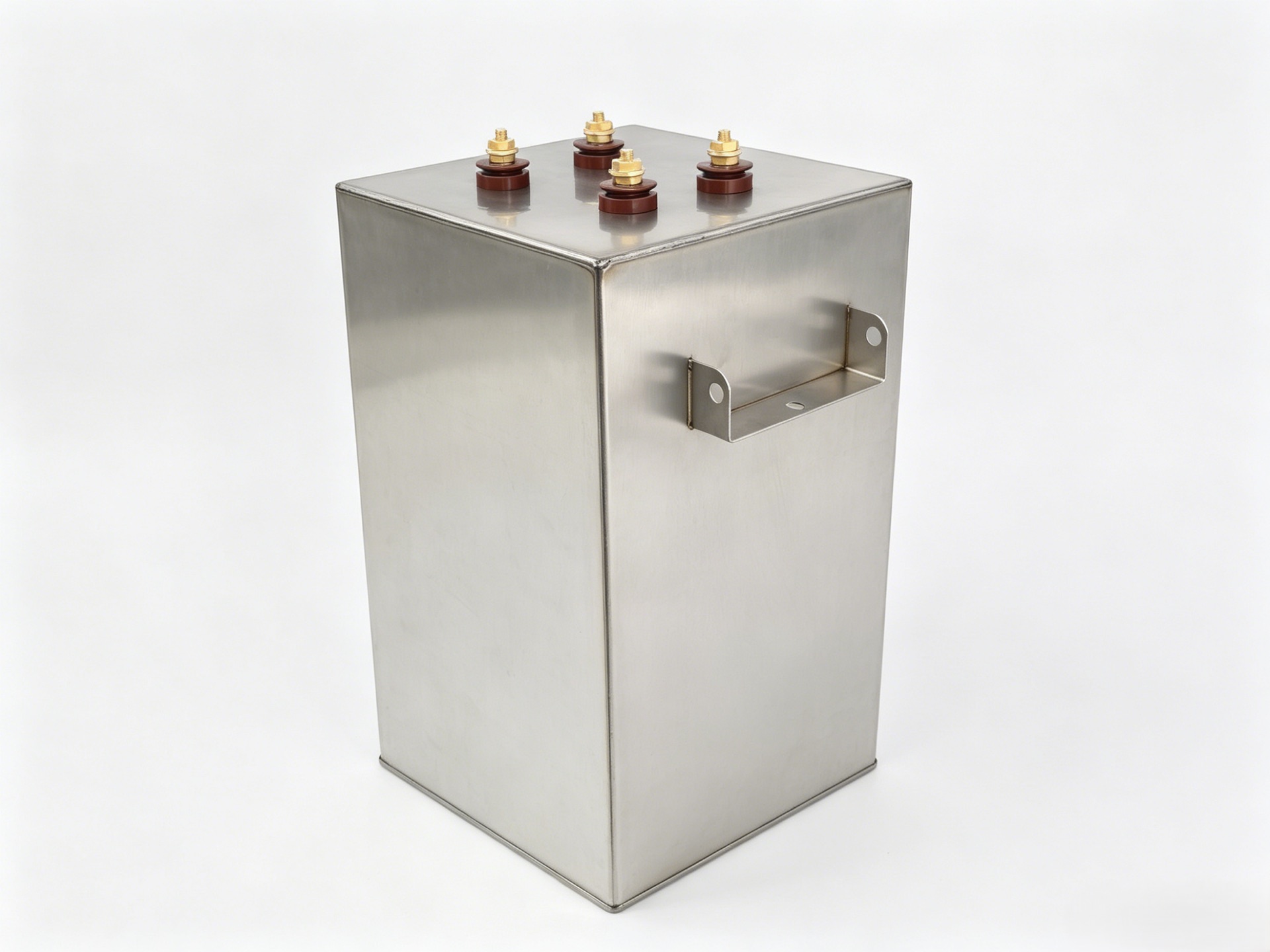

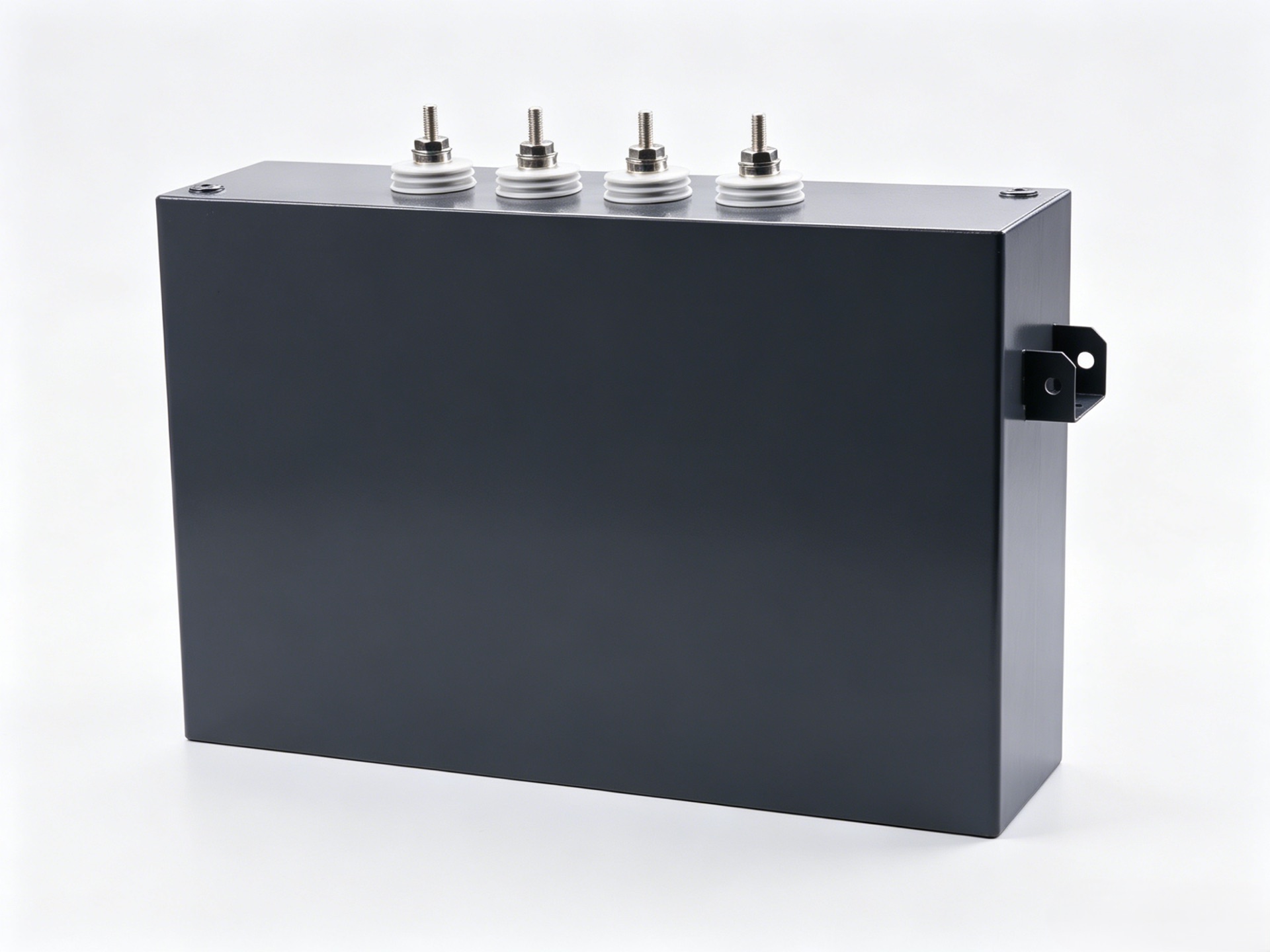

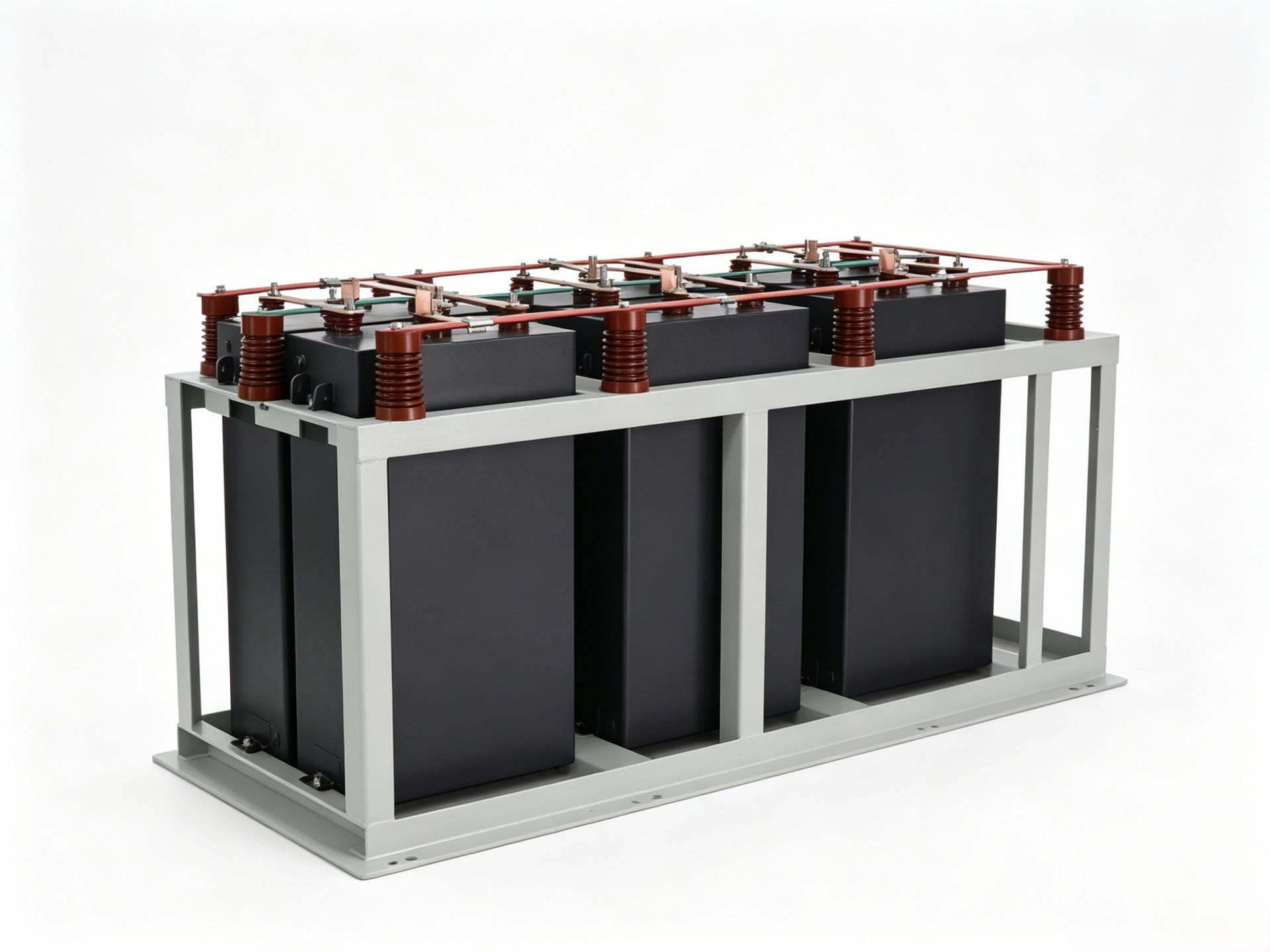

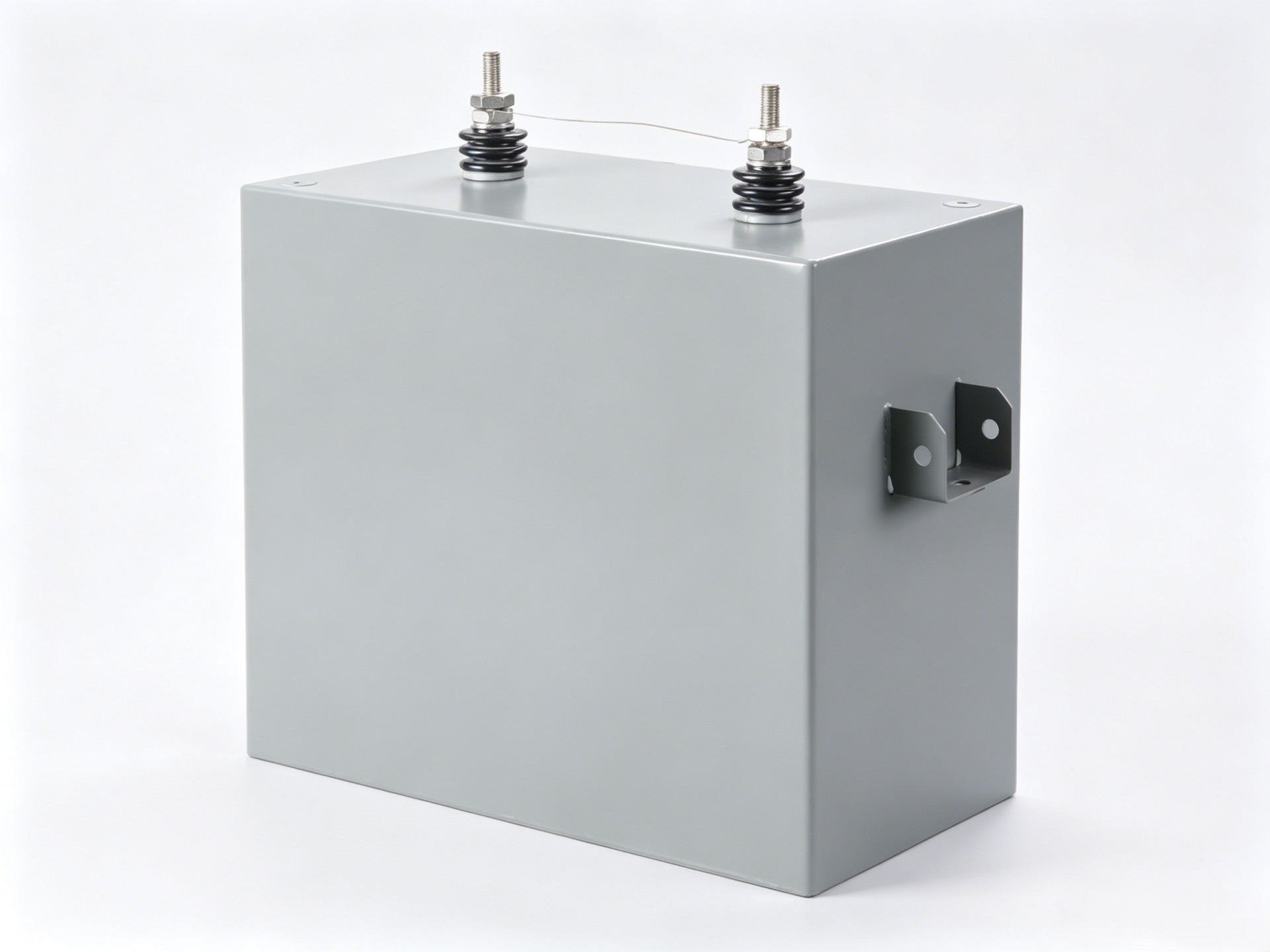

Pulse Capacitors

Pulse Capacitors

Pulse capacitors engineered for high peak discharge current applications, featuring low-inductance, low-ESR construction with high energy density and excellent pulse life.
Widely used in fusion energy, high-energy physics, pulsed power systems, electromagnetic forming, laser power supplies, and surge current test equipment.

Applications

  • Fusion energy
  • High-energy physics
  • Pulsed power systems
  • Electromagnetic forming
  • Laser power supplies
  • Surge current test equipment

Technical Specifications

ParameterValue
Rated Voltage (Un) 10–45 kV
Capacitance (Cn) 12–120 μF
Structure Low inductance (low ESL) · low ESR
Discharge Capability High peak discharge current · high energy density
Standards GB/T · IEC

Product Models

№TYPEUn (kV)Cn (μF)L (mm)W (mm)H (mm)
1MAM10-751075305284400Enquire
2MAM10-12010120305284560Enquire
3MAM15-451545305284400Enquire
4MAM15-701570305284550Enquire
5MAM18-601860430385700Enquire
6MAM20-202020305284430Enquire
7MAM20-302030305284550Enquire
8MAM25-302530430360450Enquire
9MAM25-402540430360550Enquire
10MAM30-203020430360430Enquire
11MAM30-303030430360550Enquire
12MAM35-153515430360430Enquire
13MAM35-253525430360630Enquire
14MAM40-154015430360530Enquire
15MAM40-204020430360630Enquire
16MAM45-124512430360530Enquire
17MAM45-154515430360630Enquire
Un (kV) — Rated VoltageCn (μF) — Nominal CapacitanceL (mm) — WidthW (mm) — ThicknessH (mm) — Height

Have a specific requirement?

Talk to our engineers about custom specifications or to request a datasheet.
