Special Application

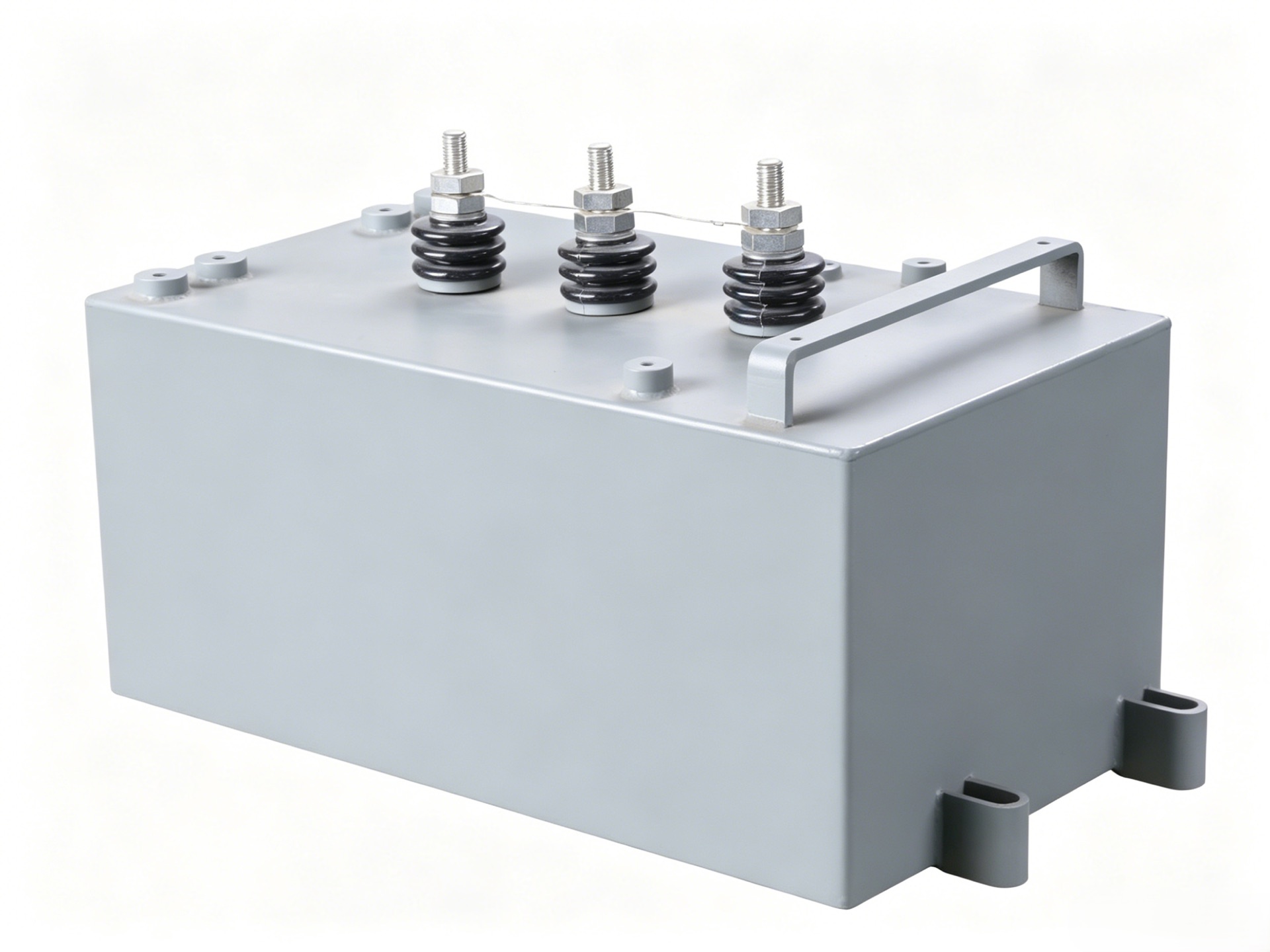

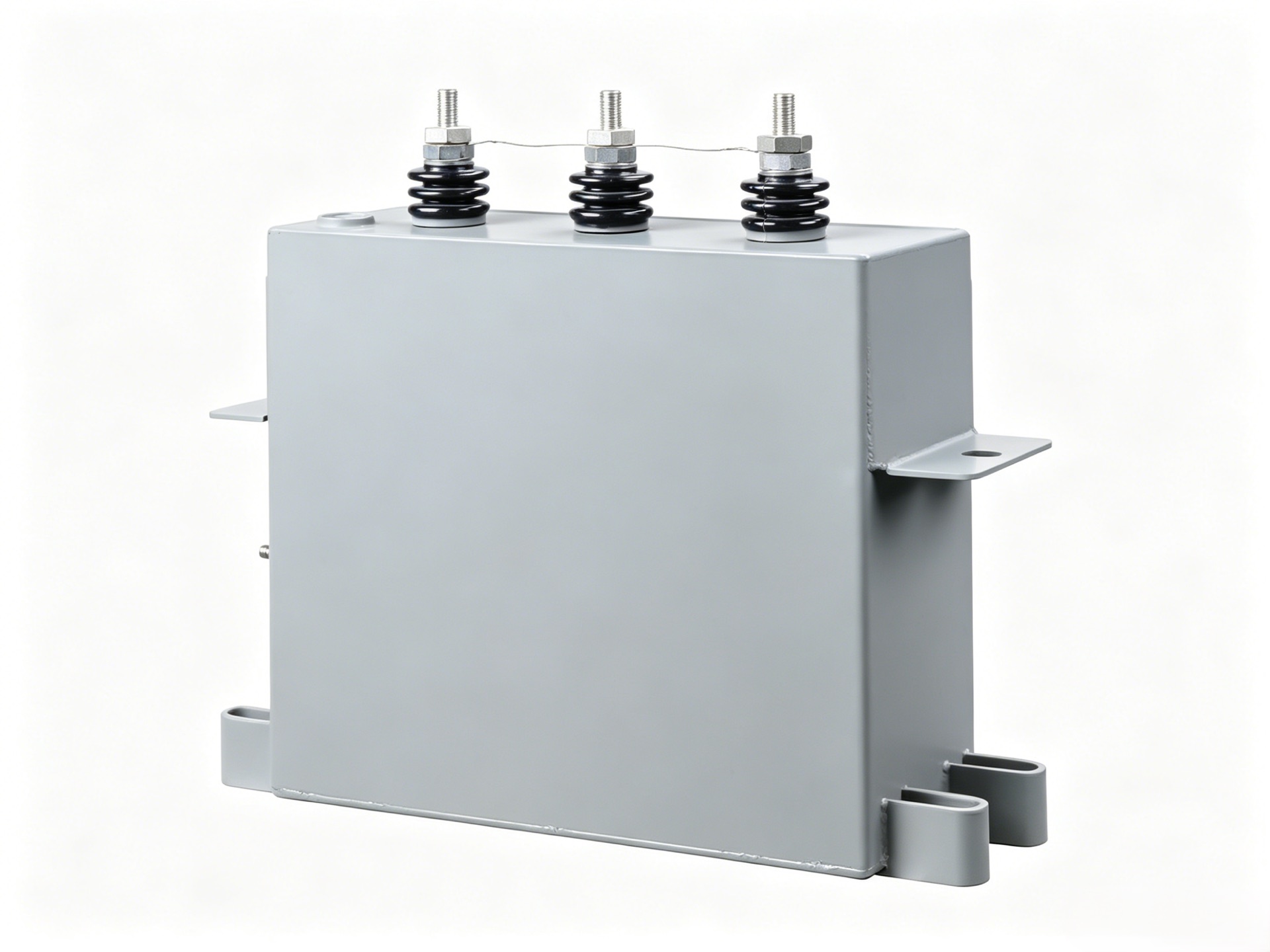

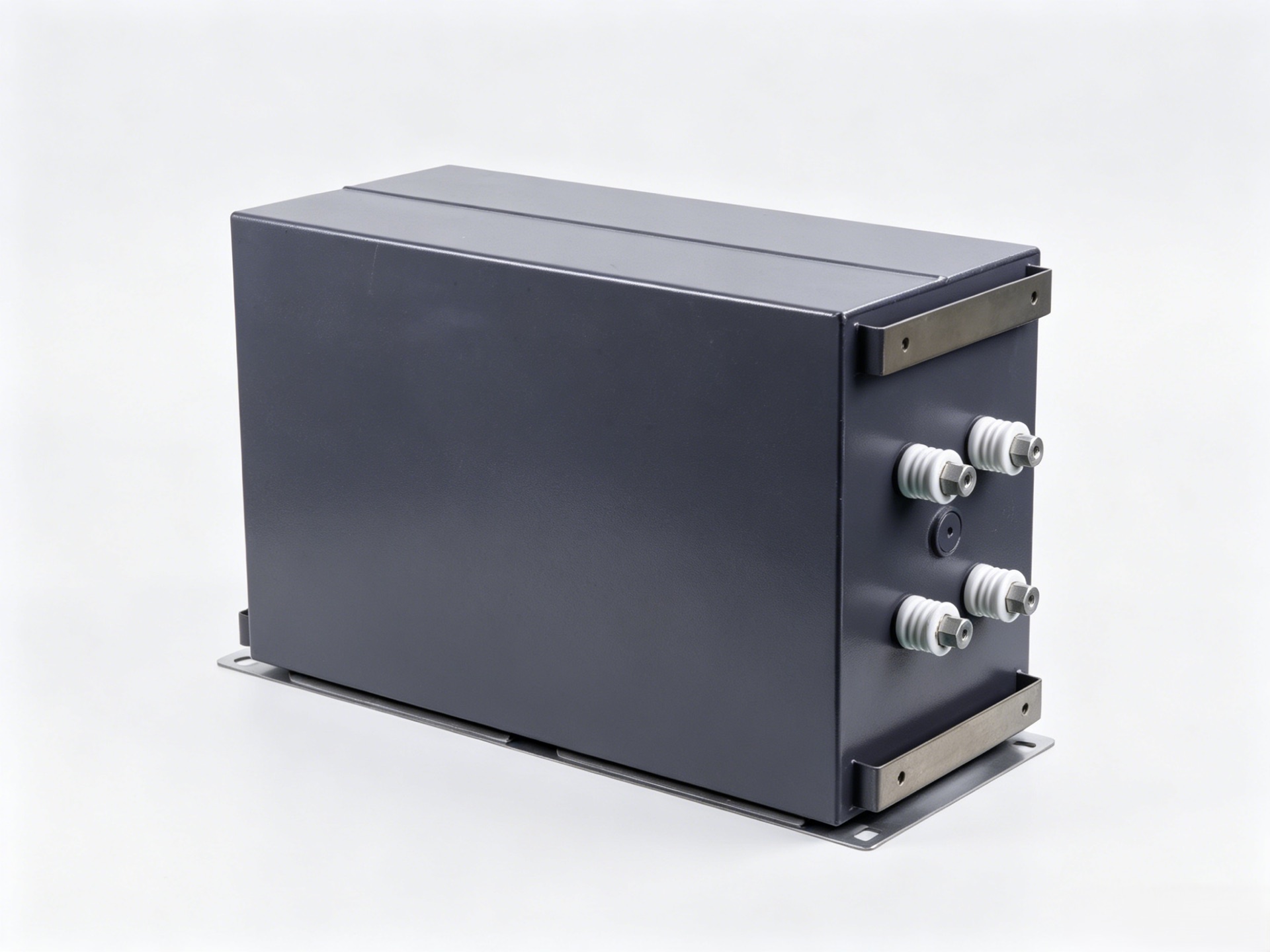

Rail Transit Traction Power System Application Capacitors

DC support and filtering capacitors for traction and auxiliary converters in locomotives, metro, and light rail — featuring excellent weatherability, high safety, low inductance, and high reliability with high vibration resistance, wide temperature range, and extended service life.

Applications

  • High-speed rail traction converters
  • Metro & light rail drive converters
  • Auxiliary converters

Technical Specifications

ParameterValue
Rated Voltage (Un) 0.75–3.3 kV
Rated Current (In) 160–520 A
Capacitance (Cn) 1600–10000 μF
Environmental High vibration resistance · wide temperature range
Features Low inductance · long service life
Standards GB/T · IEC

Product Models

№TYPEUn (kV)In (A)Cn (μF)L (mm)W (mm)H (mm)TERMINALS
10.75-100000.75241100004261204004Enquire
21.8-22501.830022503051146854Enquire
31.85-25001.8552025003401127204Enquire
41.85-30001.8548030004751254506Enquire
53.3-16003.316016003302306004Enquire
63.3-22003.321422003302305204Enquire
Un (kV) — Rated VoltageIn (A) — Rated CurrentCn (μF) — Nominal CapacitanceL (mm) — WidthW (mm) — ThicknessH (mm) — Height
