Special Application

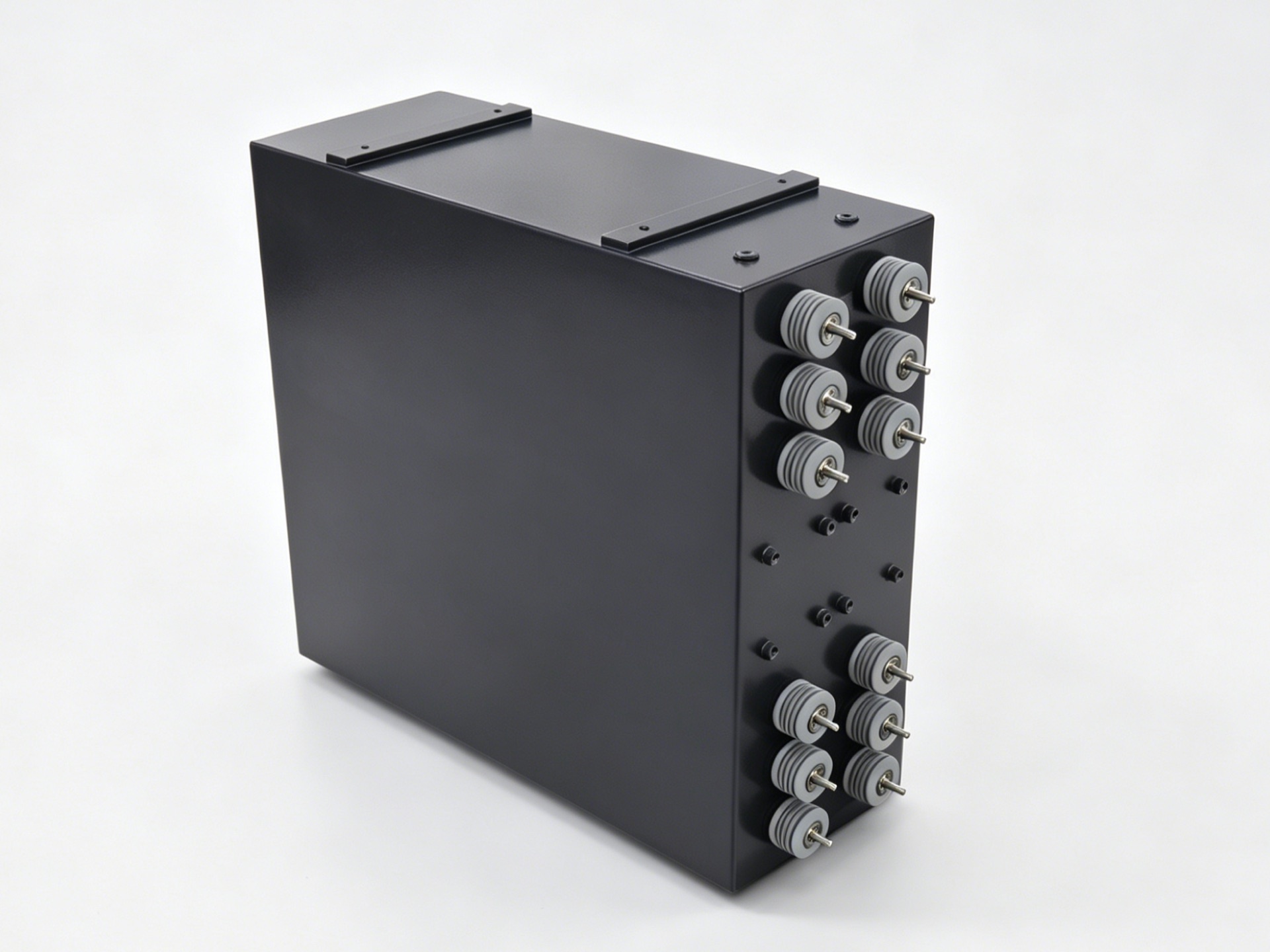

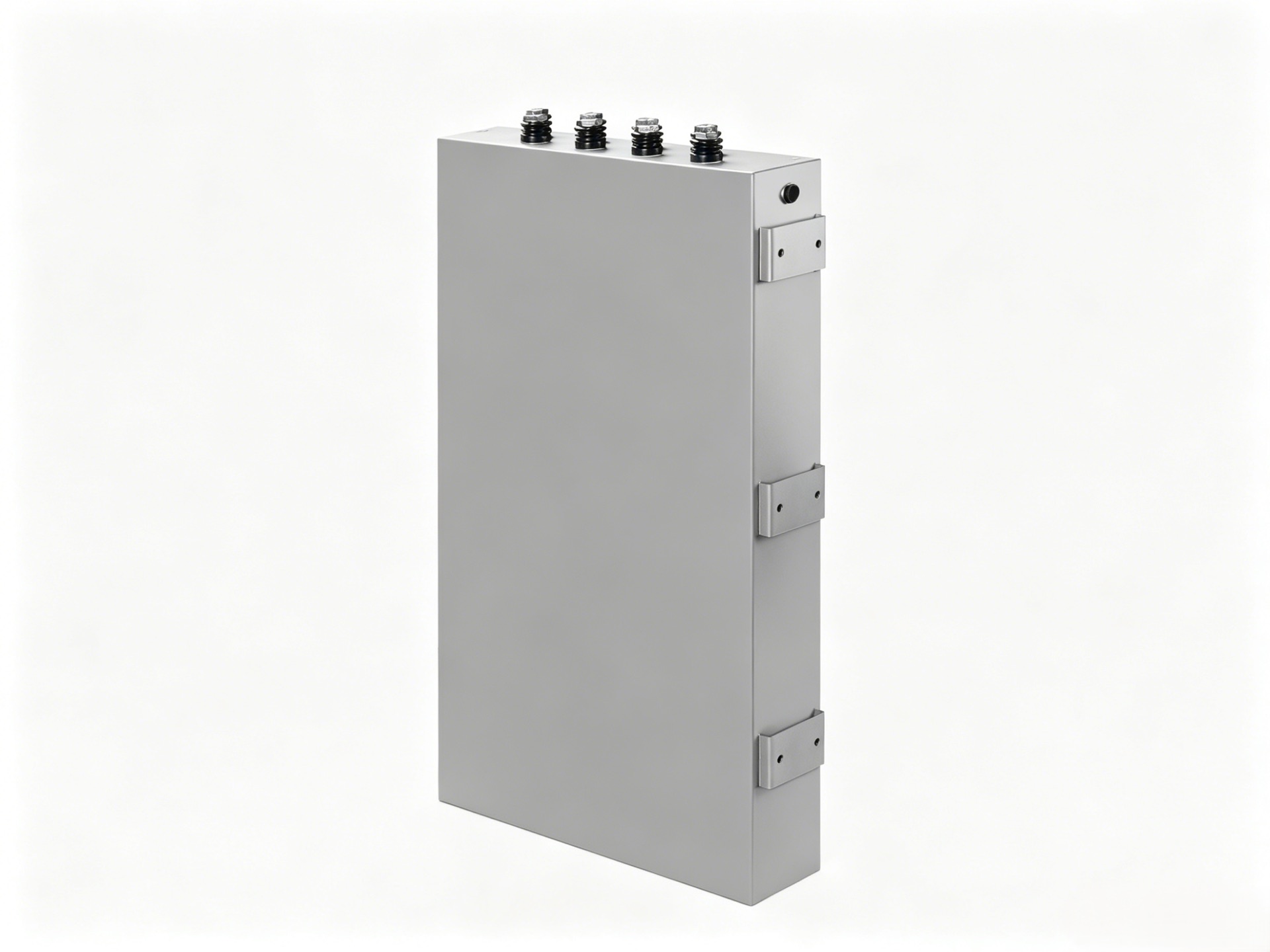

VSC-HVDC Application Capacitors

DC support and filtering capacitors for MMC sub-modules in UHVDC VSC-HVDC transmission systems — featuring excellent weatherability, high safety, low inductance, and high reliability, meeting long service life requirements.

Applications

  • MMC sub-module DC support
  • VSC-HVDC transmission
  • Offshore wind power export

Technical Specifications

ParameterValue
Rated Voltage (Un) 2.1–2.8 kV
Rated Current (In) 700–1300 A
Capacitance (Cn) 7500–15000 μF
Function MMC sub-module DC support & filtering
Features Low inductance · long service life
Standards GB/T · IEC

Product Models

№TYPEUn (kV)In (A)Cn (μF)L (mm)W (mm)H (mm)TERMINALS
12.1-100002.1700100005152207008Enquire
22.2-110002.1700110005152208508Enquire
32.8-75002.8750750068514710958Enquire
42.8-150002.813001500075031585012Enquire
Un (kV) — Rated VoltageIn (A) — Rated CurrentCn (μF) — Nominal CapacitanceL (mm) — WidthW (mm) — ThicknessH (mm) — Height

Have a specific requirement?

Talk to our engineers about custom specifications or to request a datasheet.
