Special Application

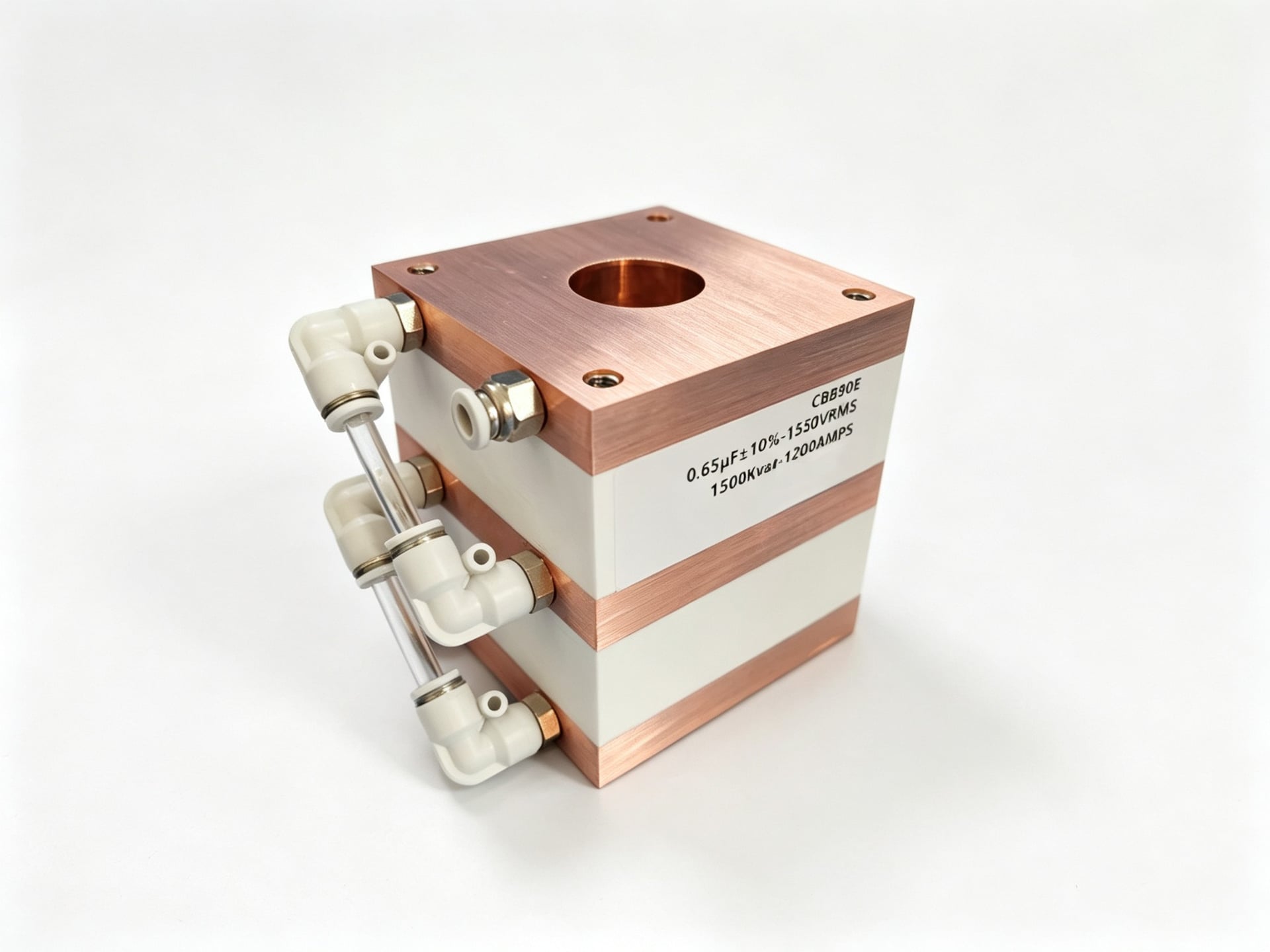

High-Frequency Metallized Film Capacitors

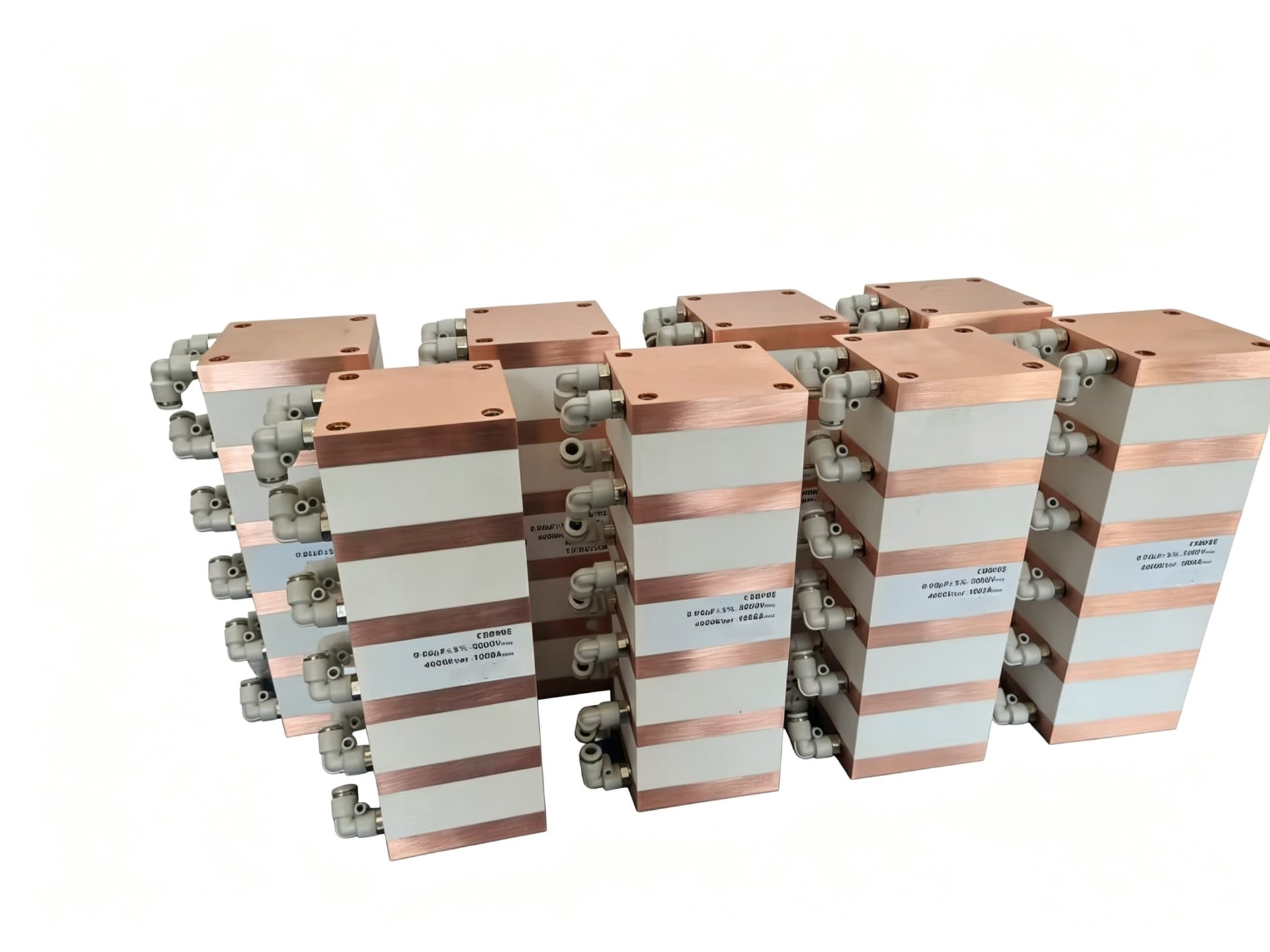

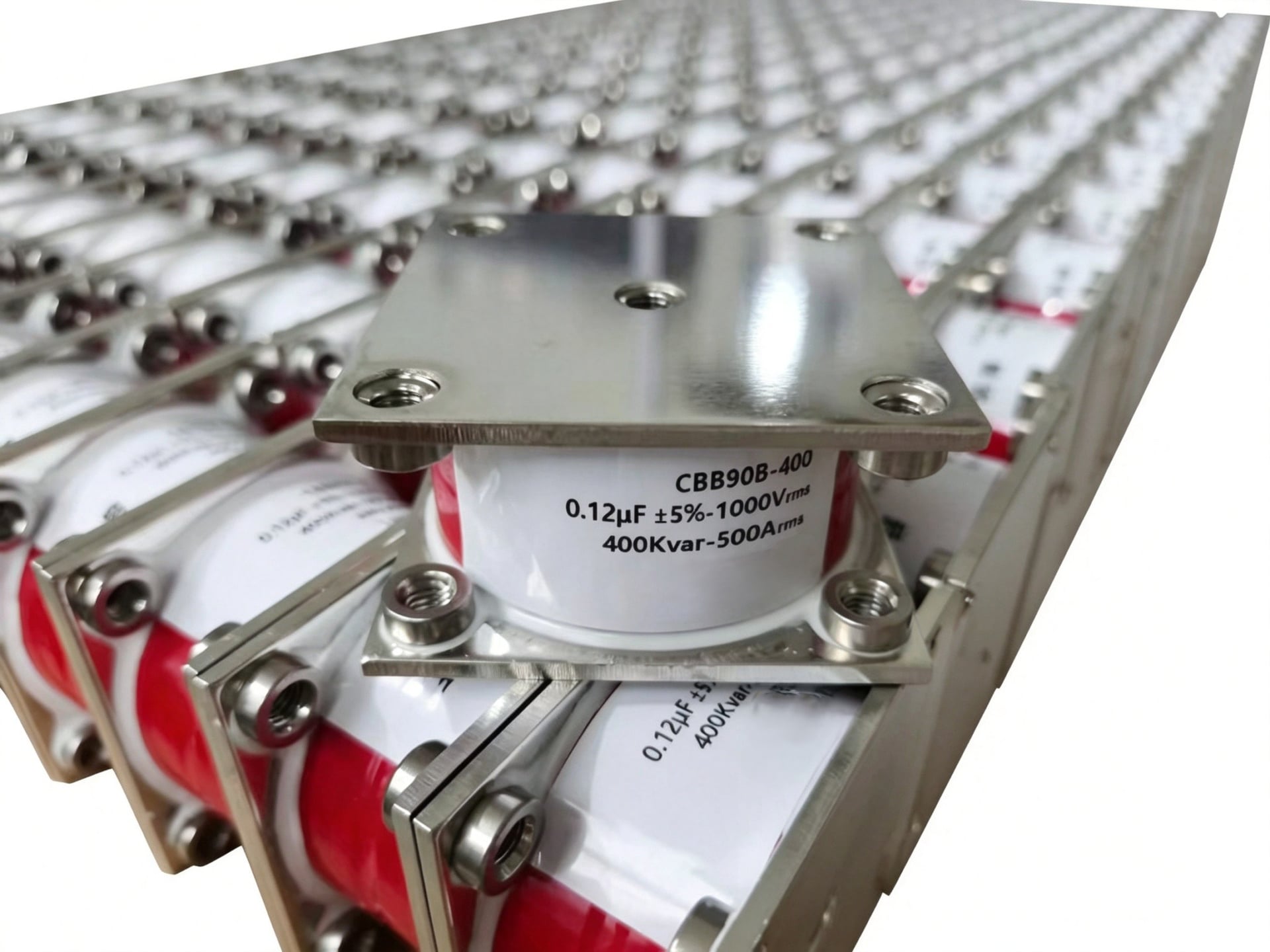

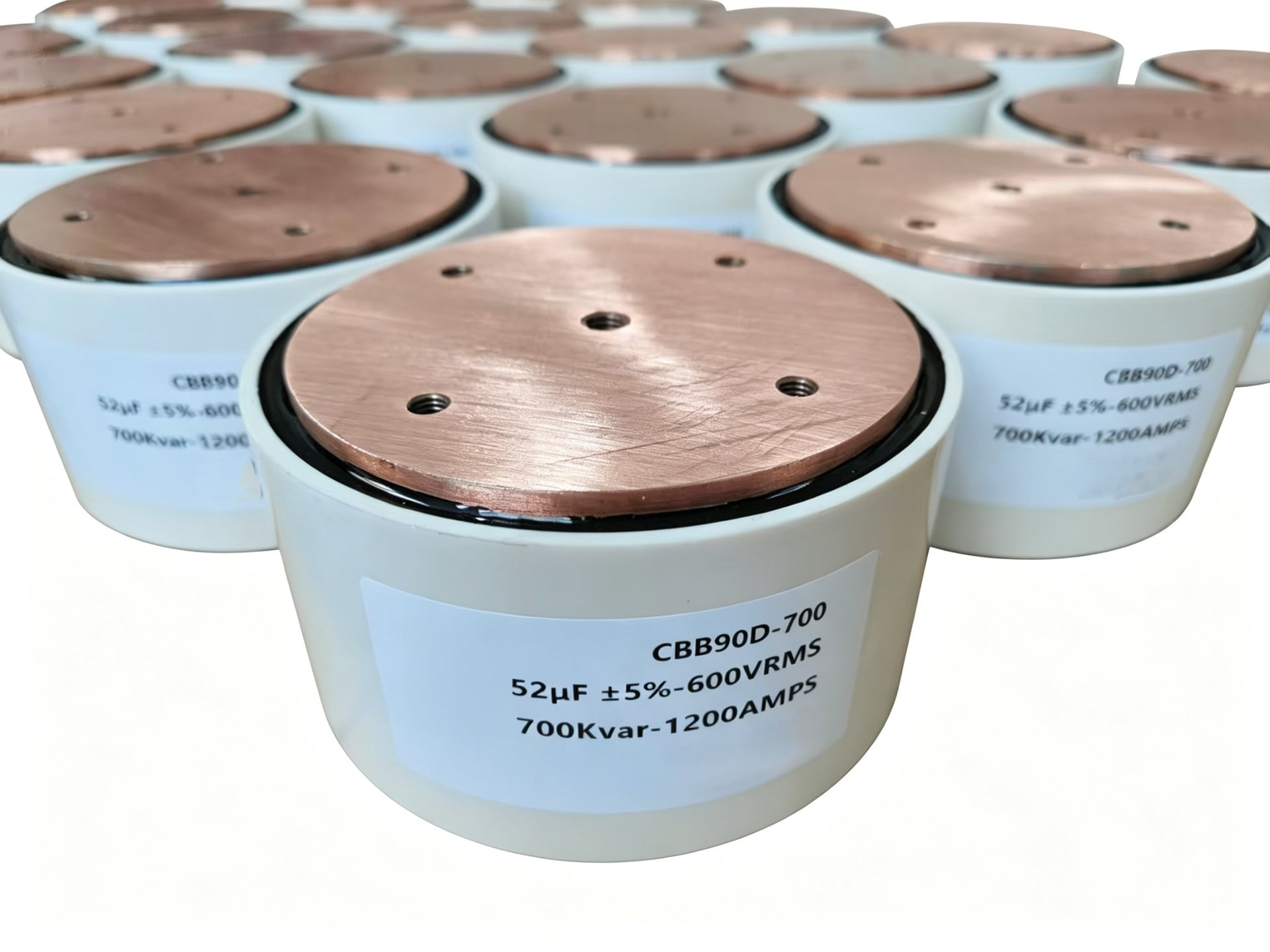

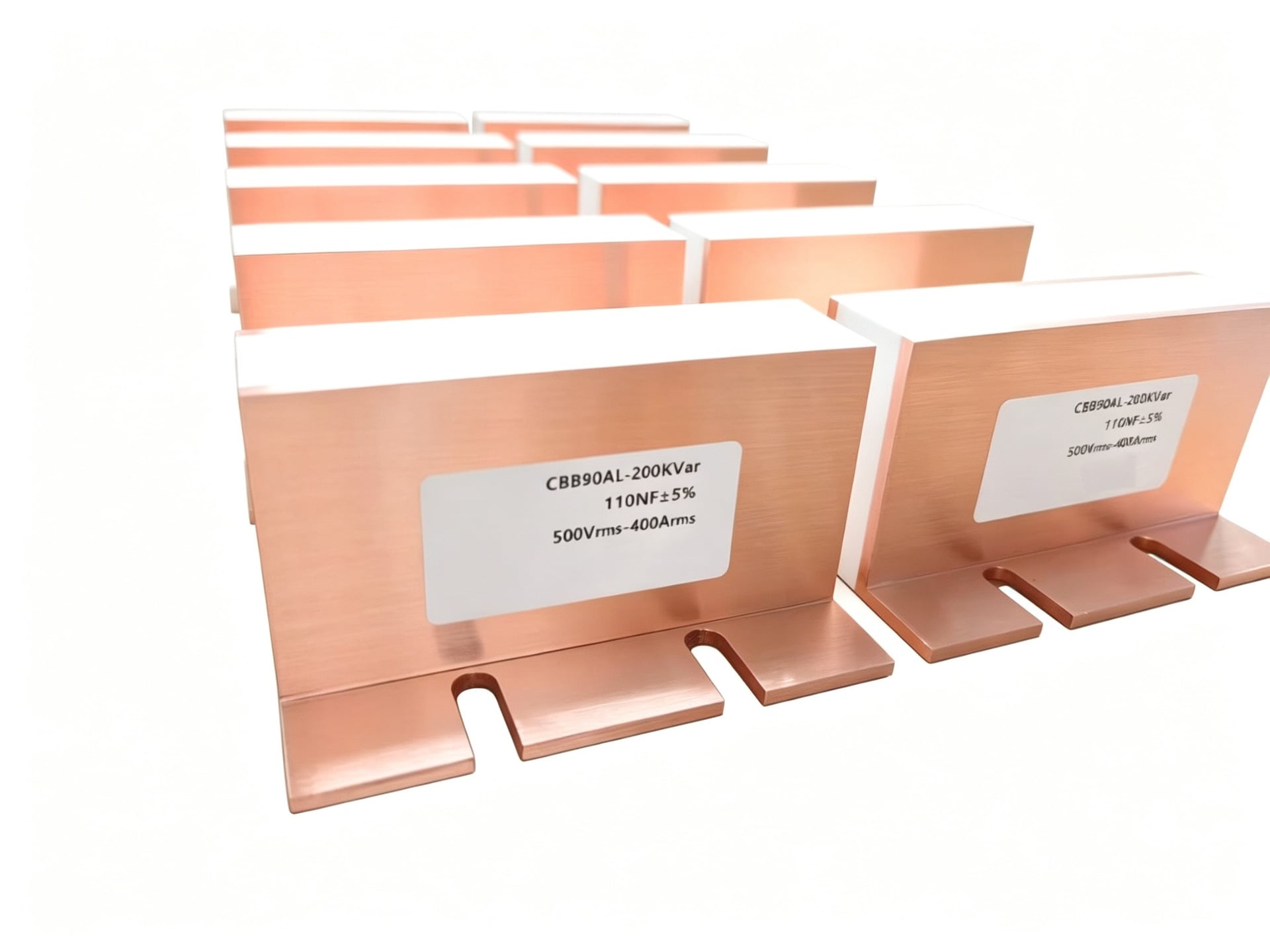

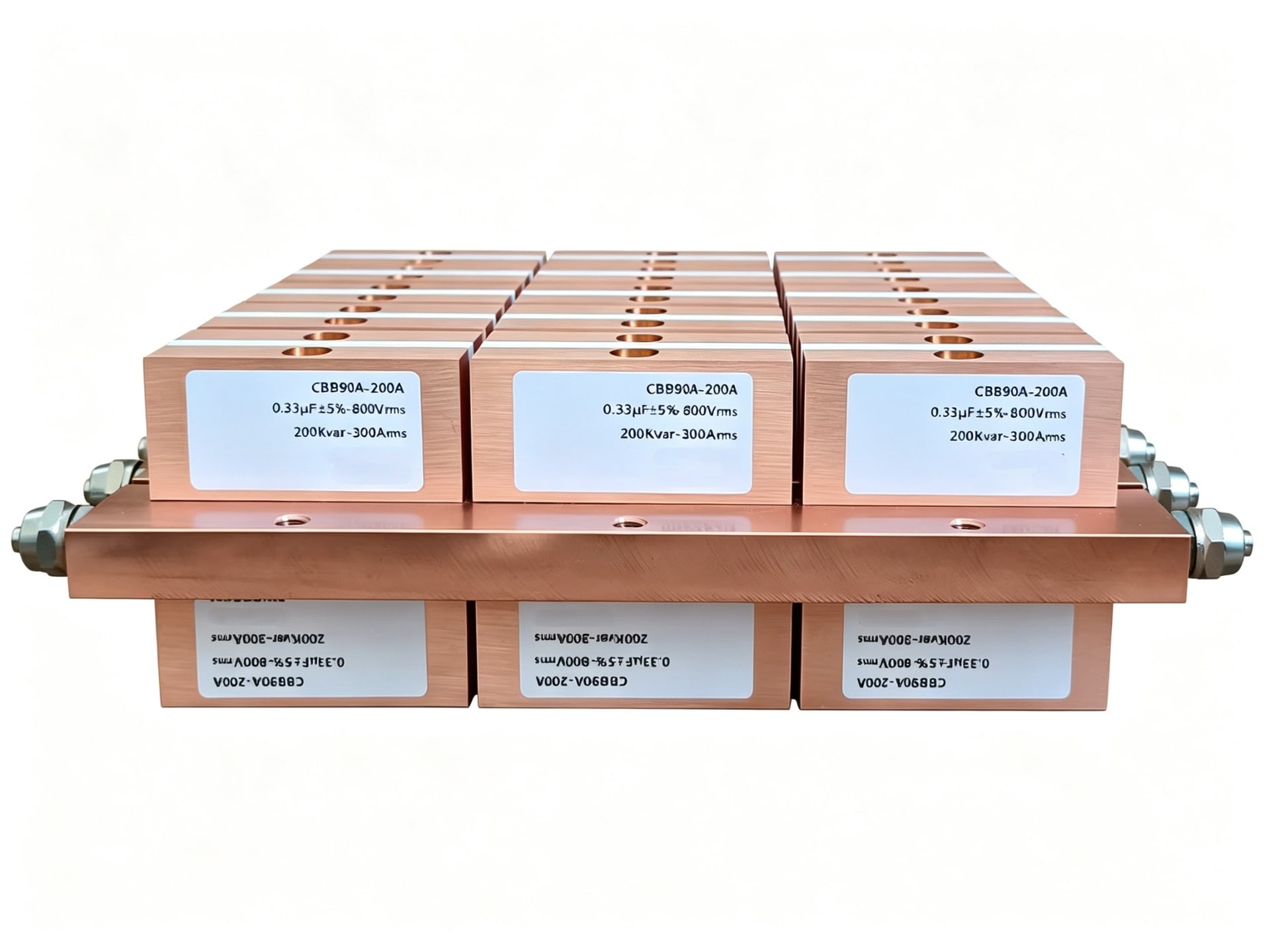

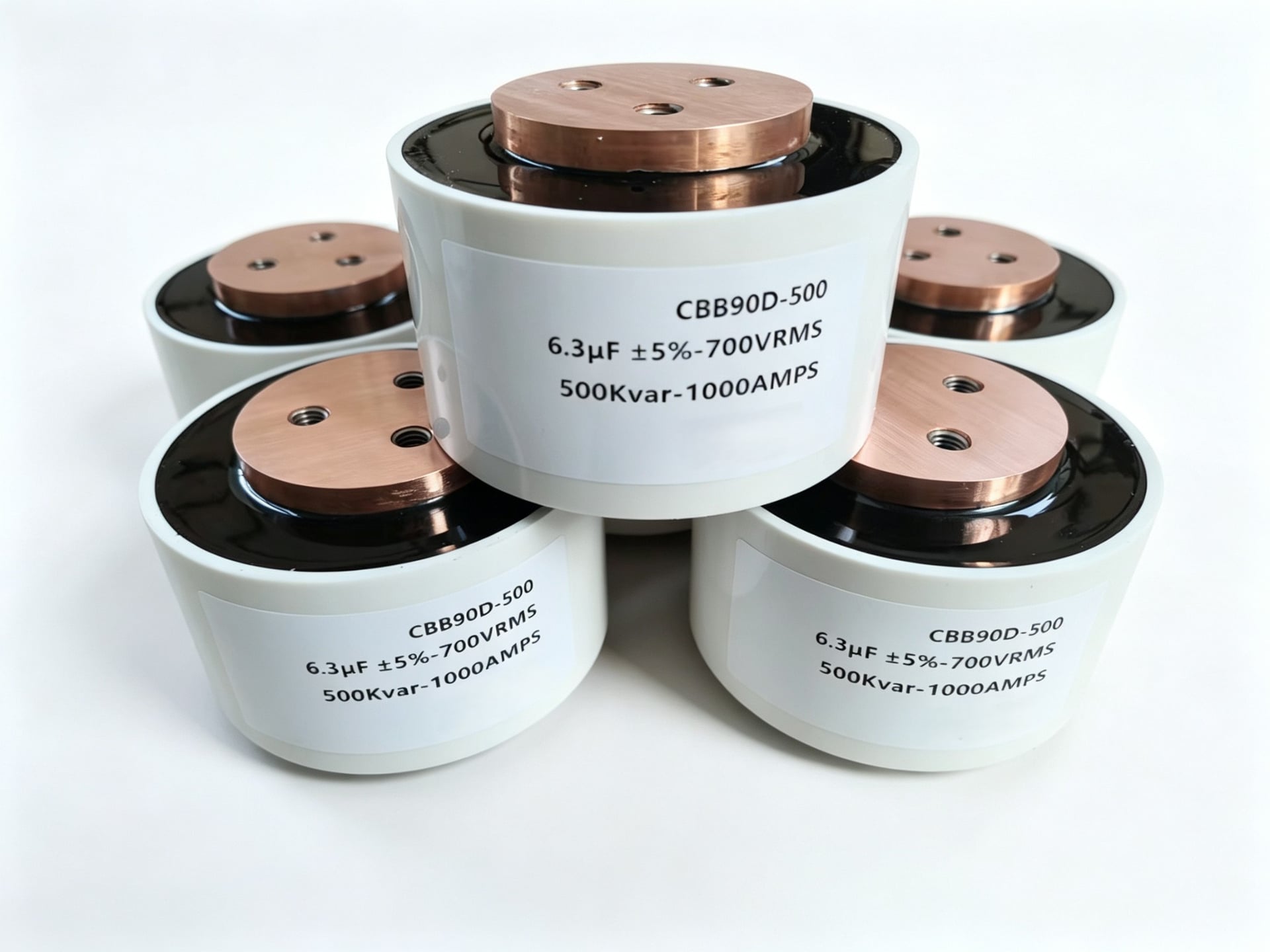

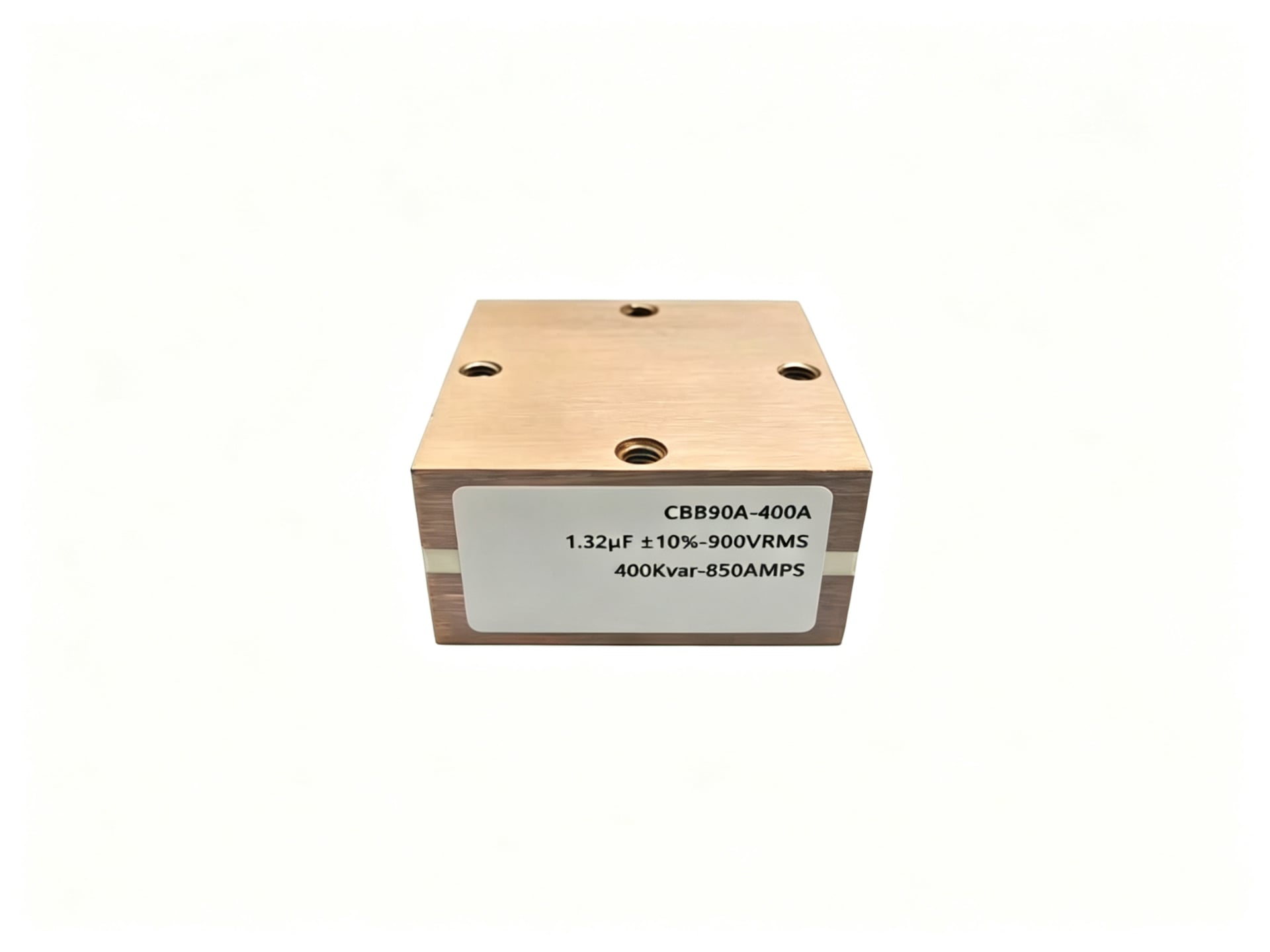

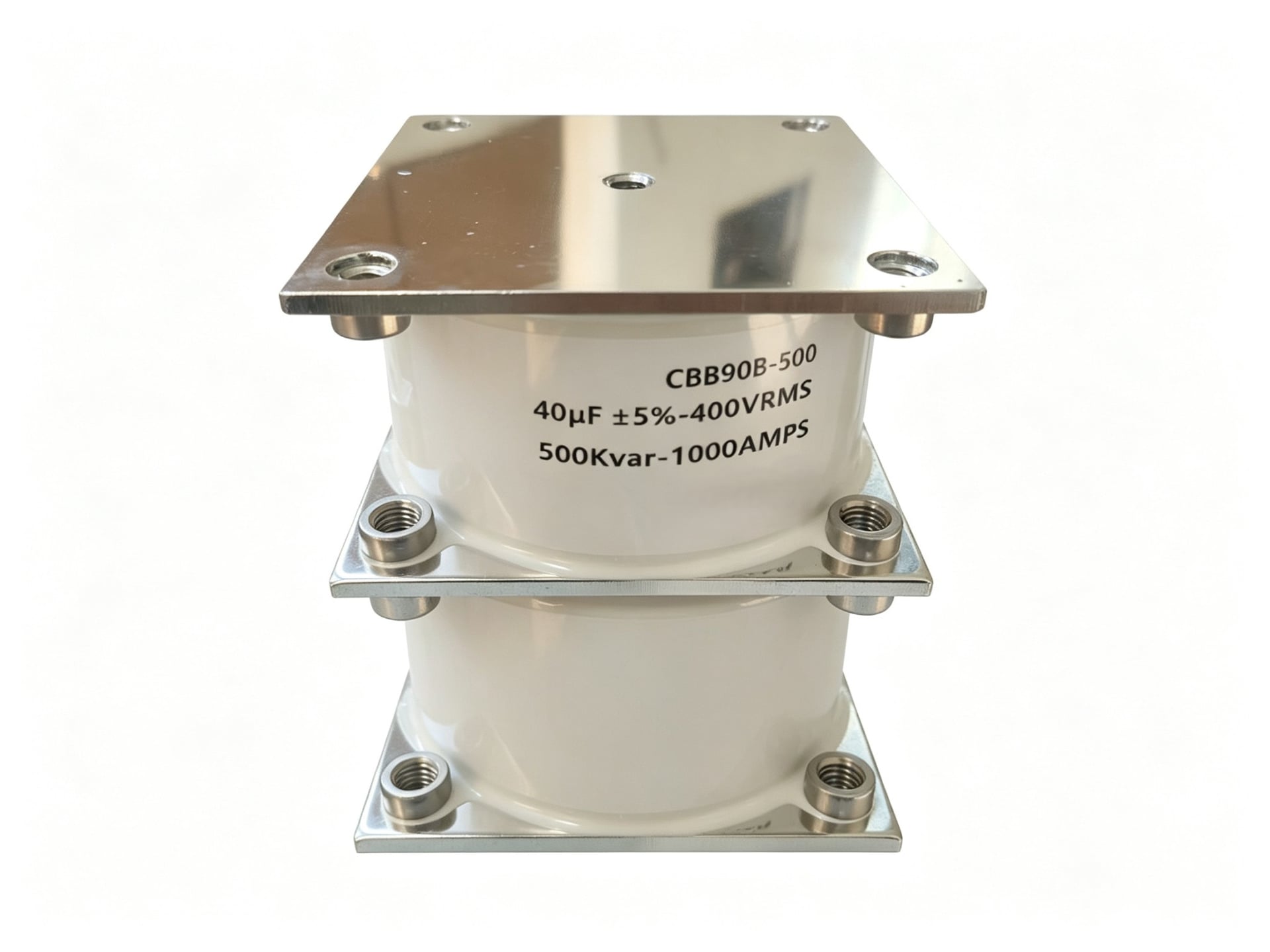

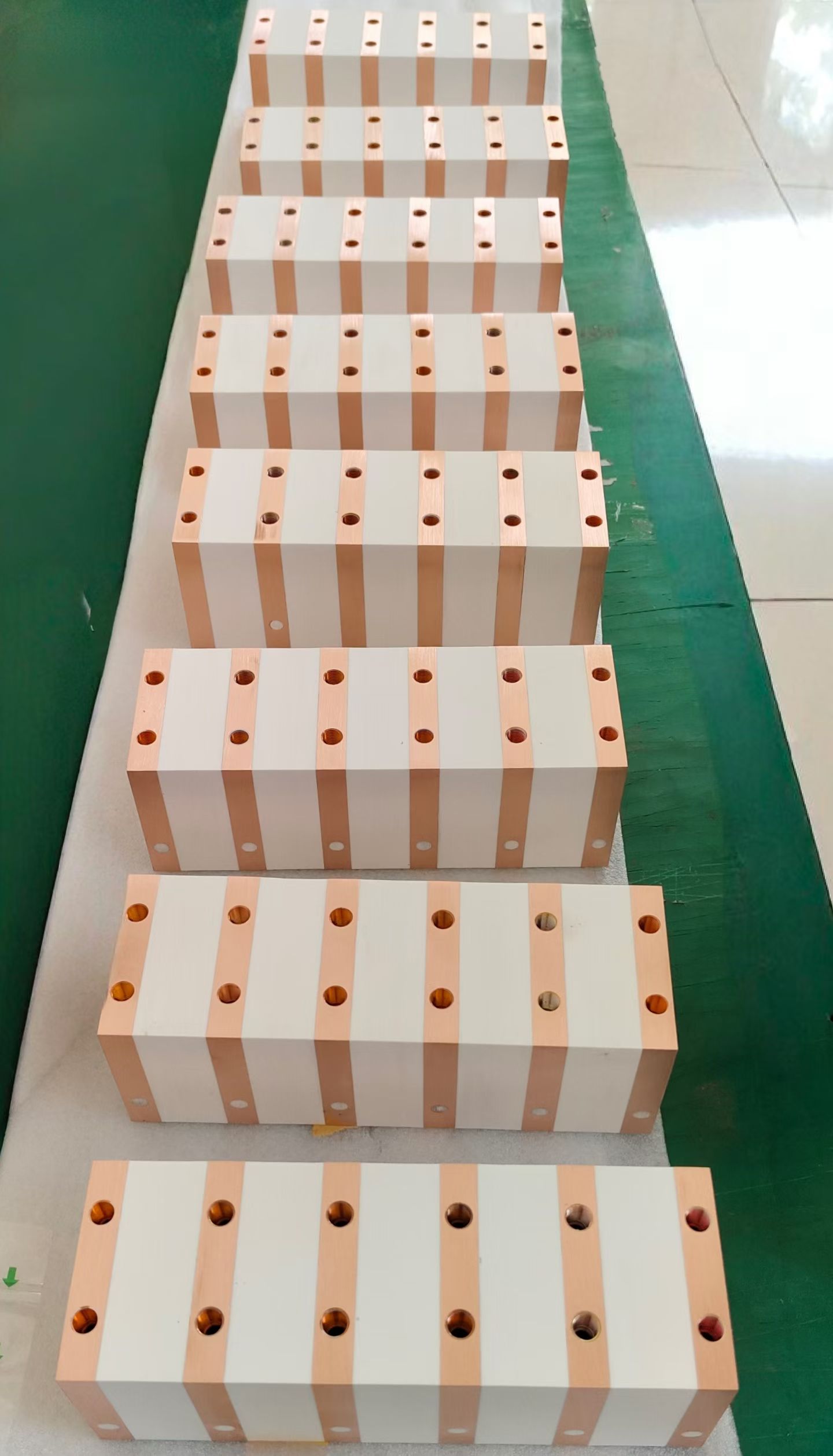

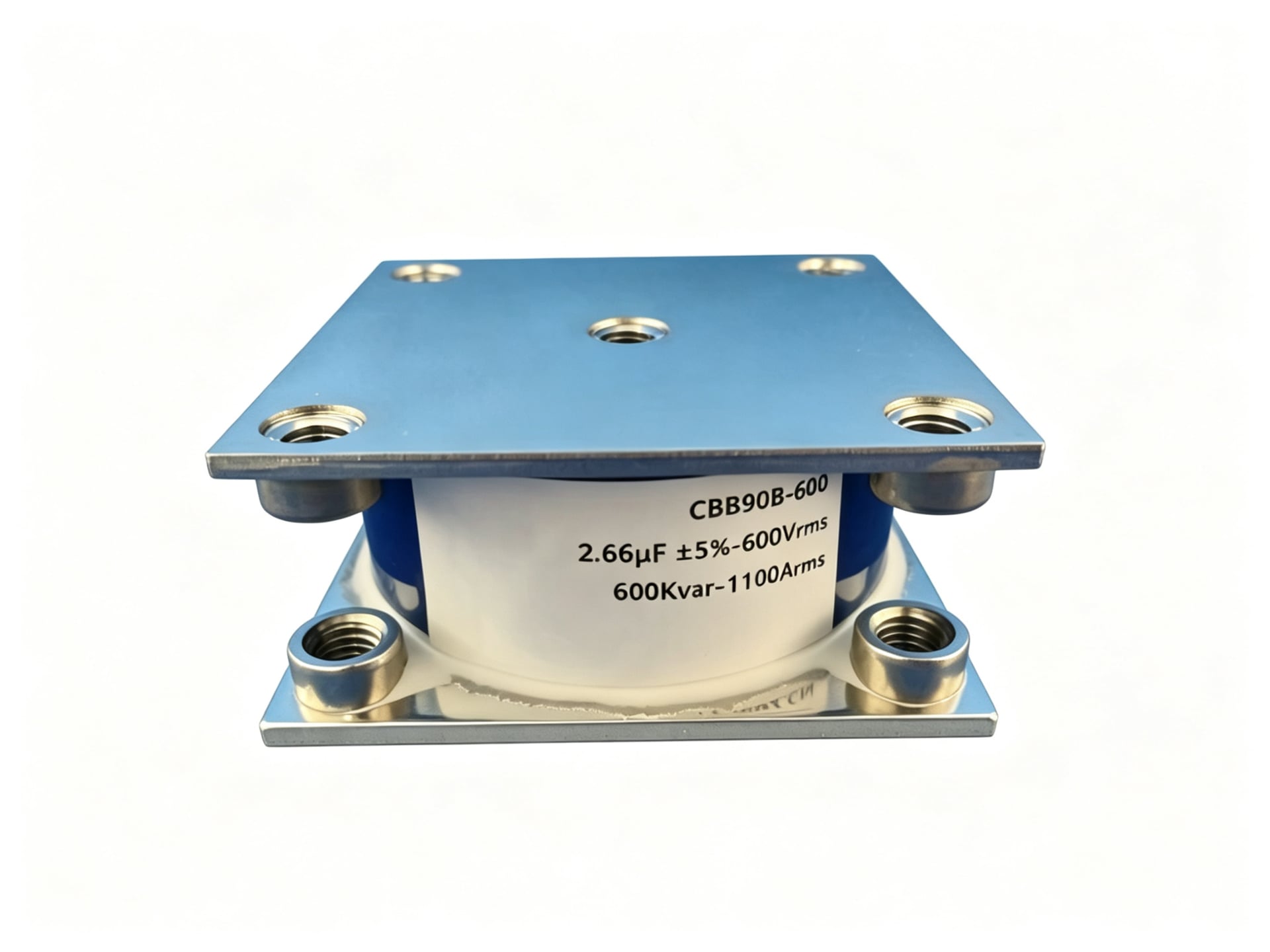

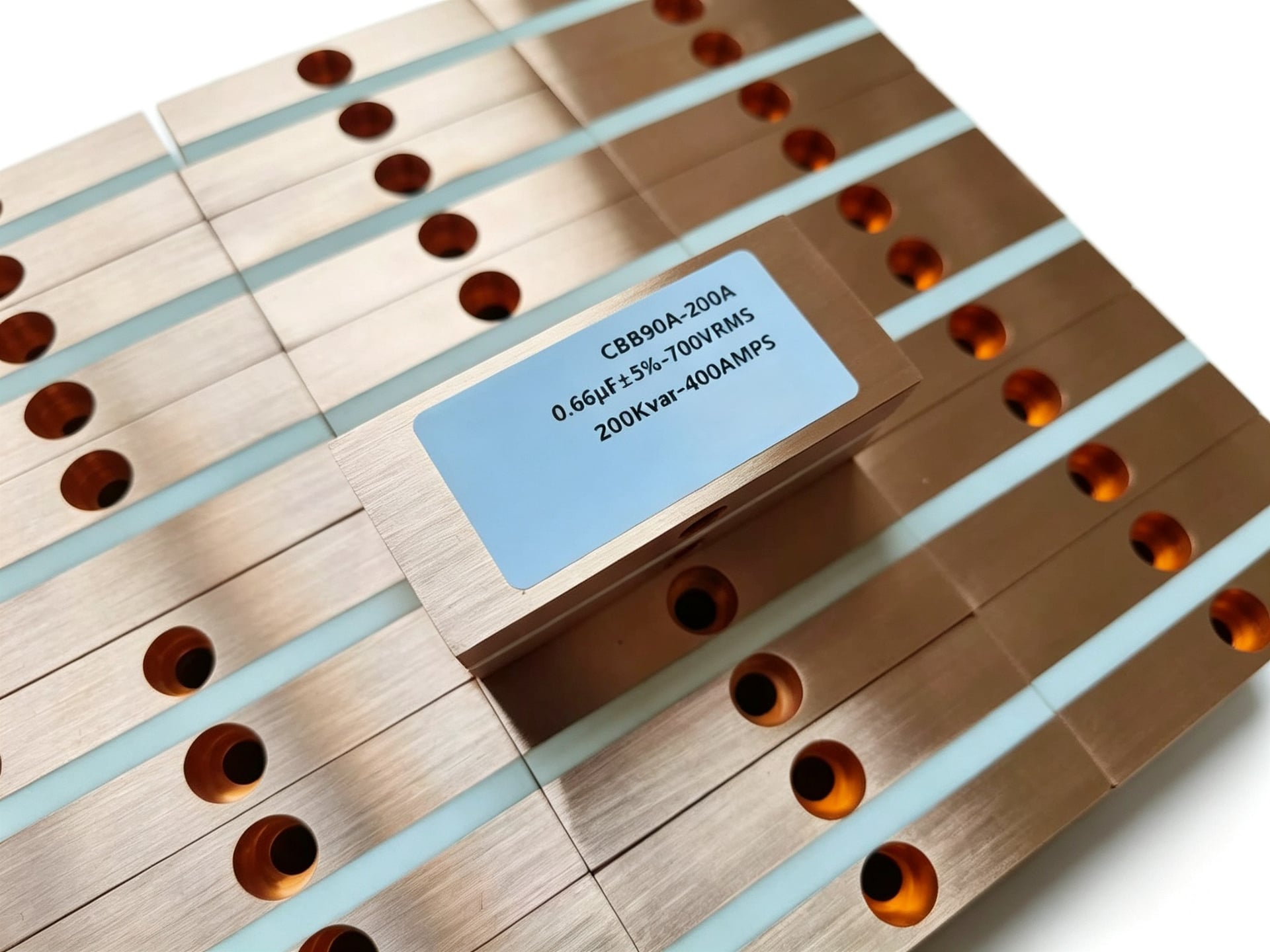

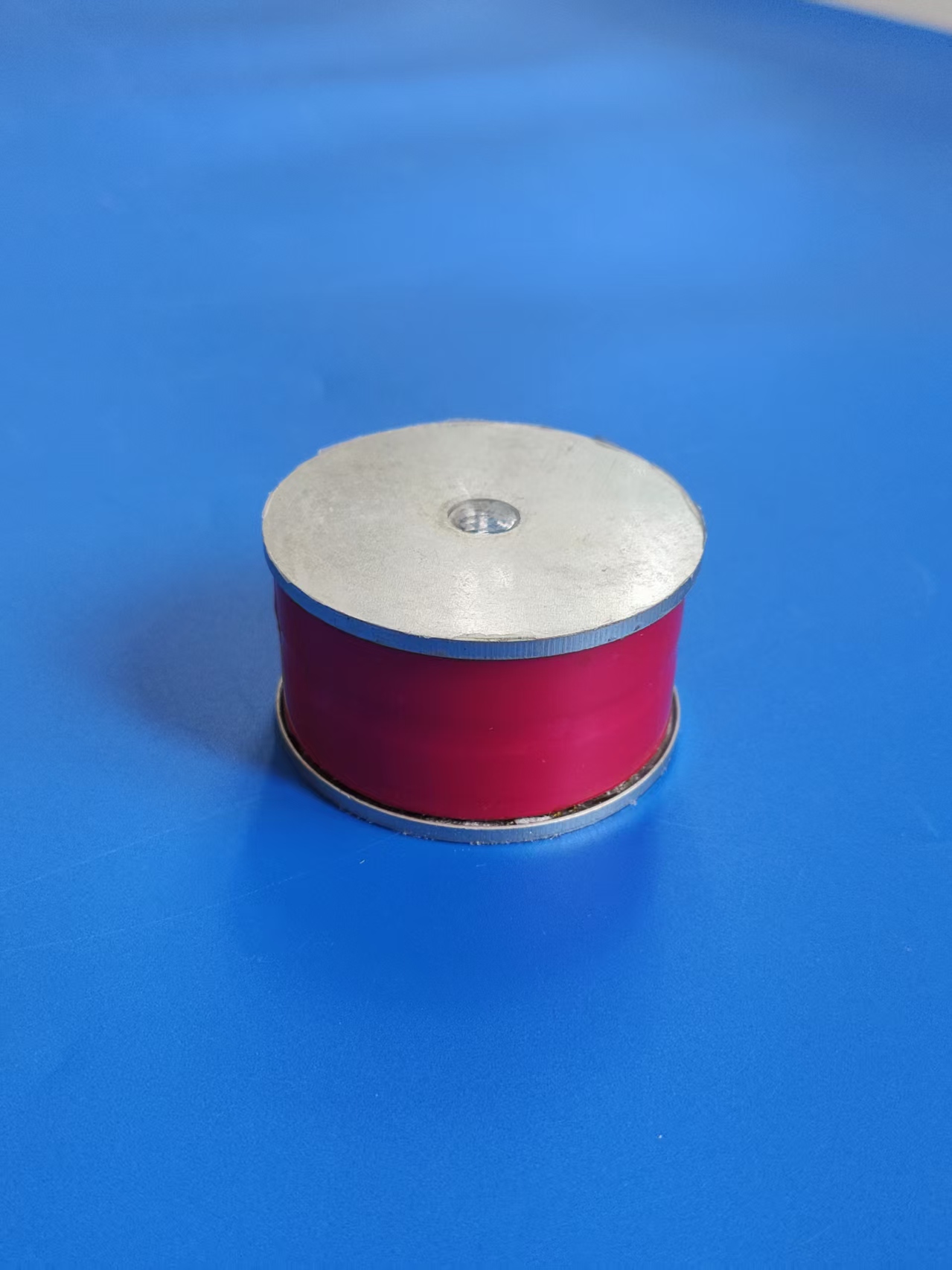

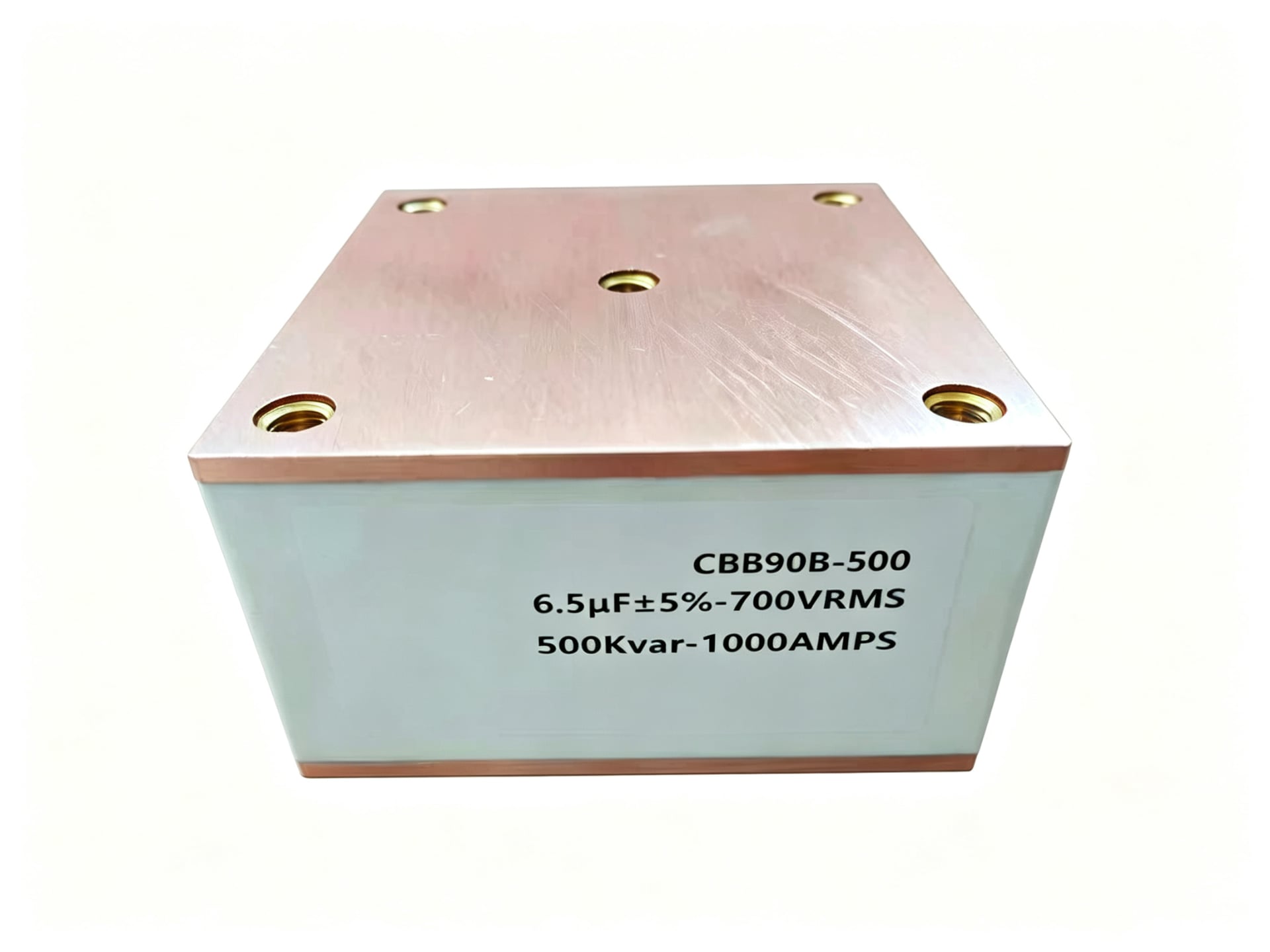

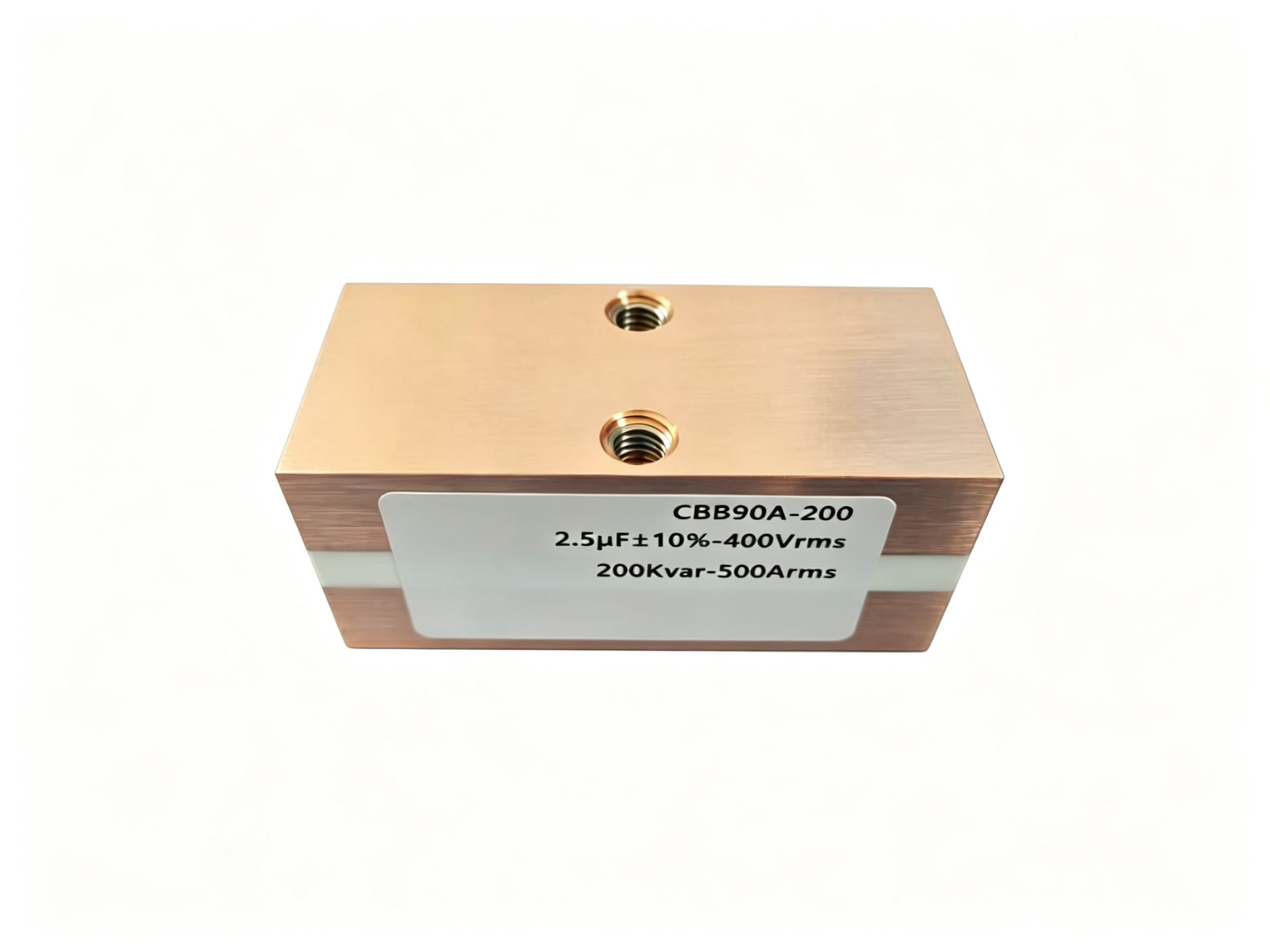

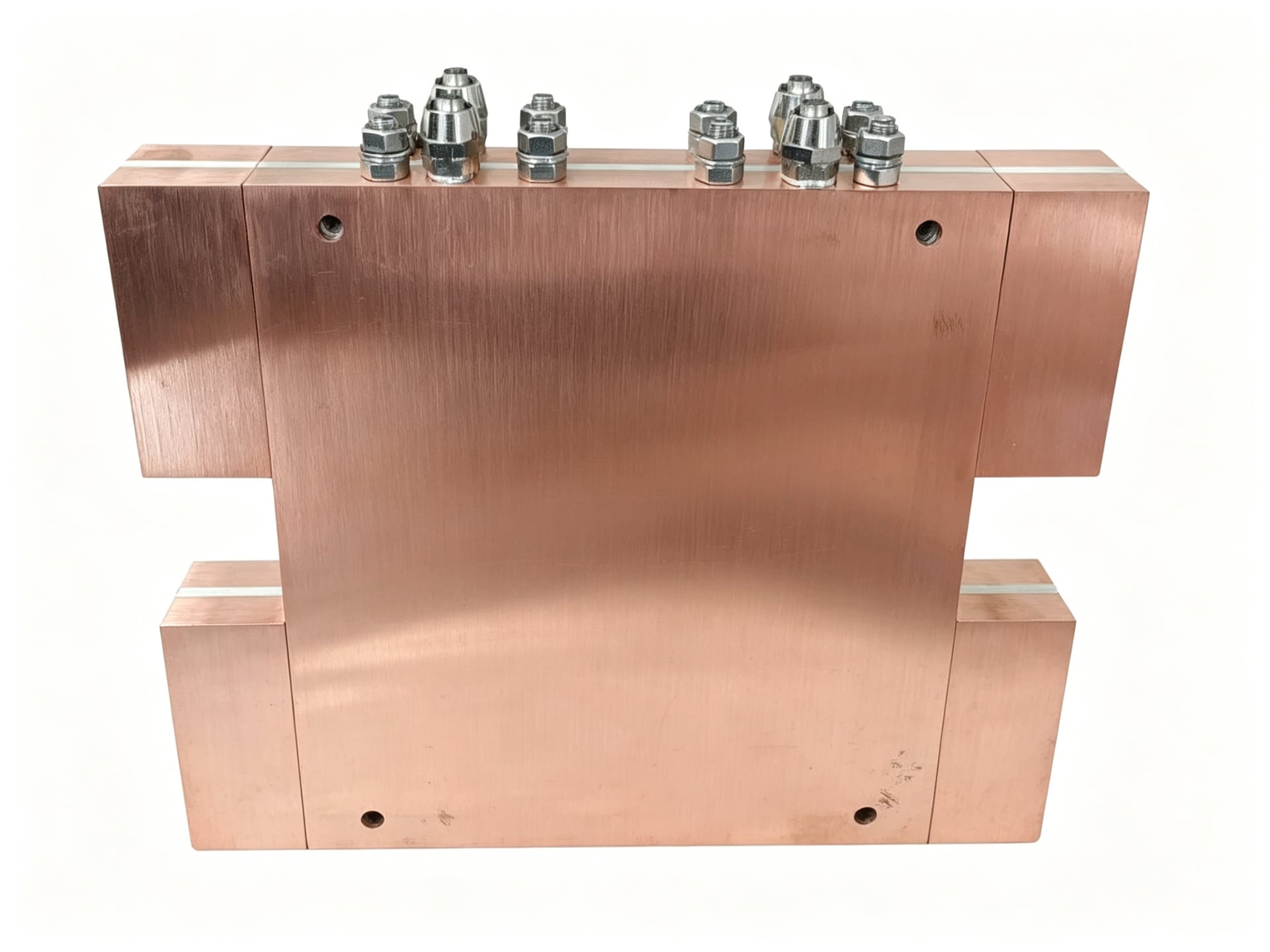

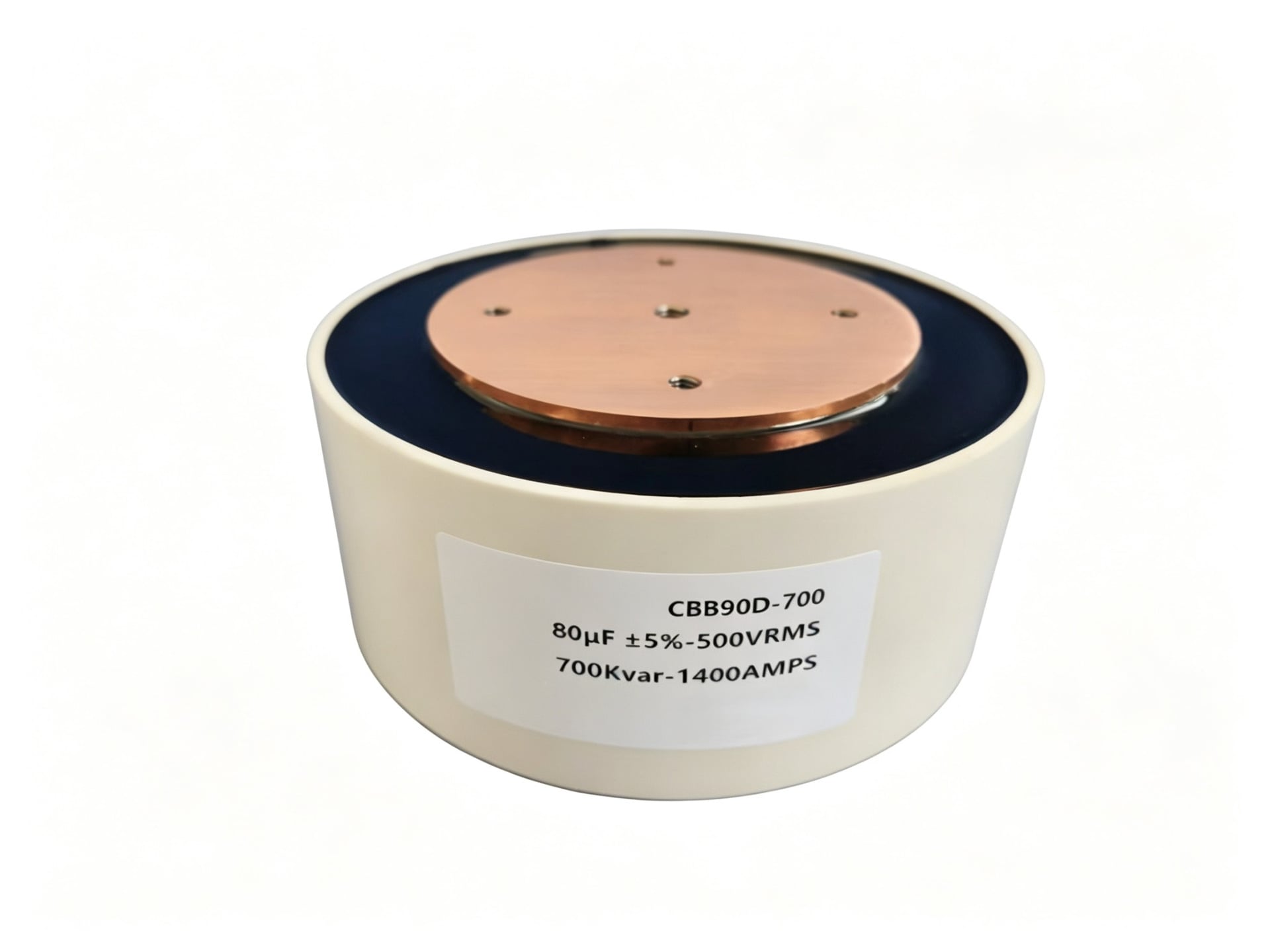

Dry-construction capacitors built on self-healing metallized polypropylene film — oil-free and maintenance-free, with copper busbar terminals for direct busbar mounting. Engineered for the resonant circuits of IGBT/MOSFET solid-state high-frequency power supplies, carrying kiloamp-class high-frequency current in a compact envelope. Available with water cooling or conduction cooling, plus optional tap-selectable models that cover several capacitance steps in a single unit.

Applications

  • Solid-state high-frequency power supply resonant circuits
  • High-frequency induction heating & melting
  • New energy converter equipment
  • Marine power systems
  • Aerospace high-reliability applications

Technical Specifications

ParameterValue
Rated Voltage (Un) 400–1550 Vrms
Reactive Power (Qn) 200–1500 kvar
Rated Current (In) 300–3000 Arms
Capacitance (Cn) 0.33–52 μF (±5% / ±10%)
Dielectric Self-healing metallized polypropylene film (dry)
Cooling Water-cooled / conduction-cooled
Standards GB/T · IEC
