Applications
- UHVDC circuit breaker main branch
- Transfer branch modules
- Commutation circuits
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage (Un) | 3.6–15 kV |
| Peak Current (Ip) | 15–61 kA |
| Capacitance (Cn) | 100–600 μF |
| Structure | Low inductance · high-energy pulse discharge |
| Features | High reliability · weather-resistant |
| Standards | Per applicable project specification |

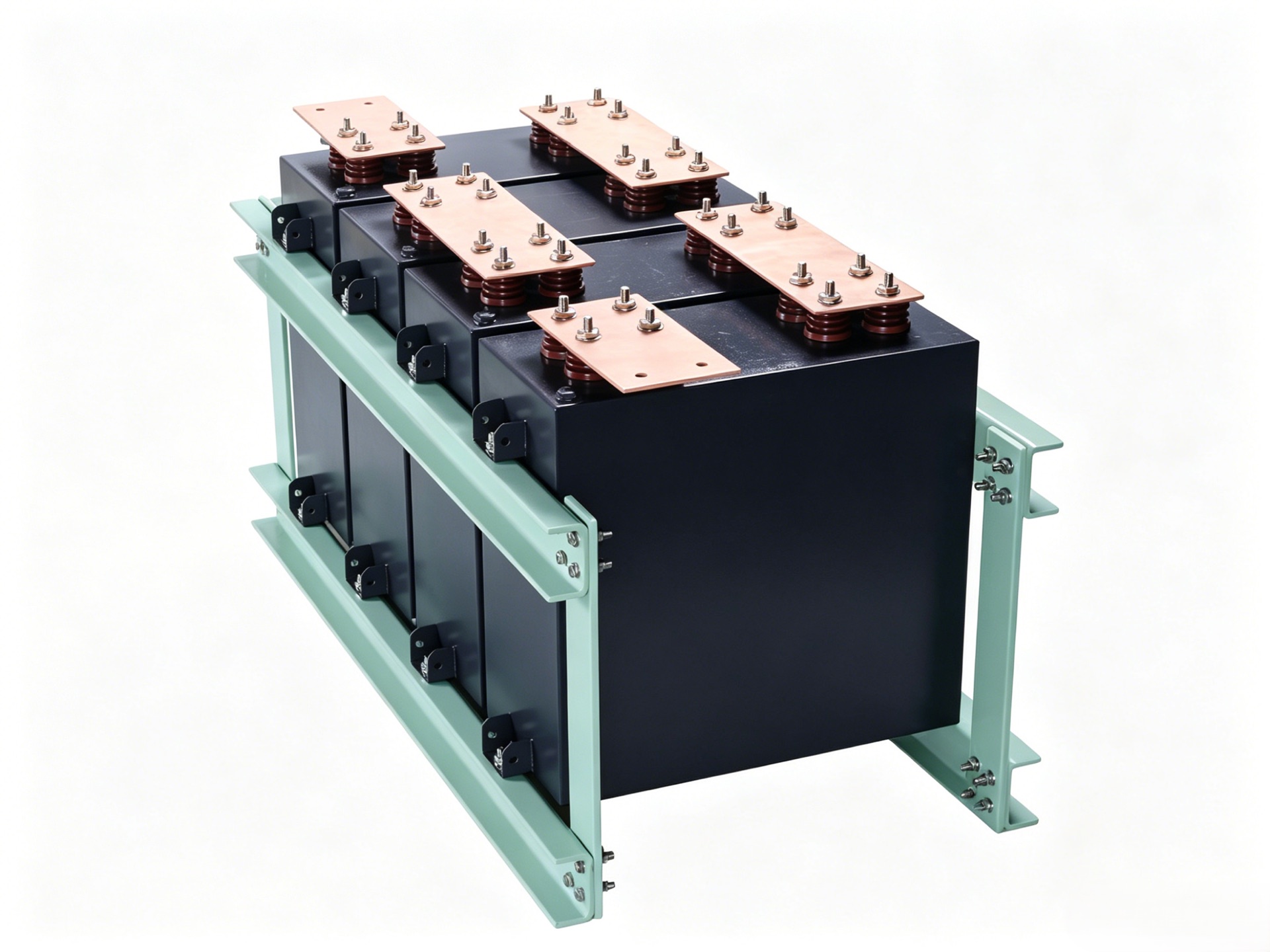

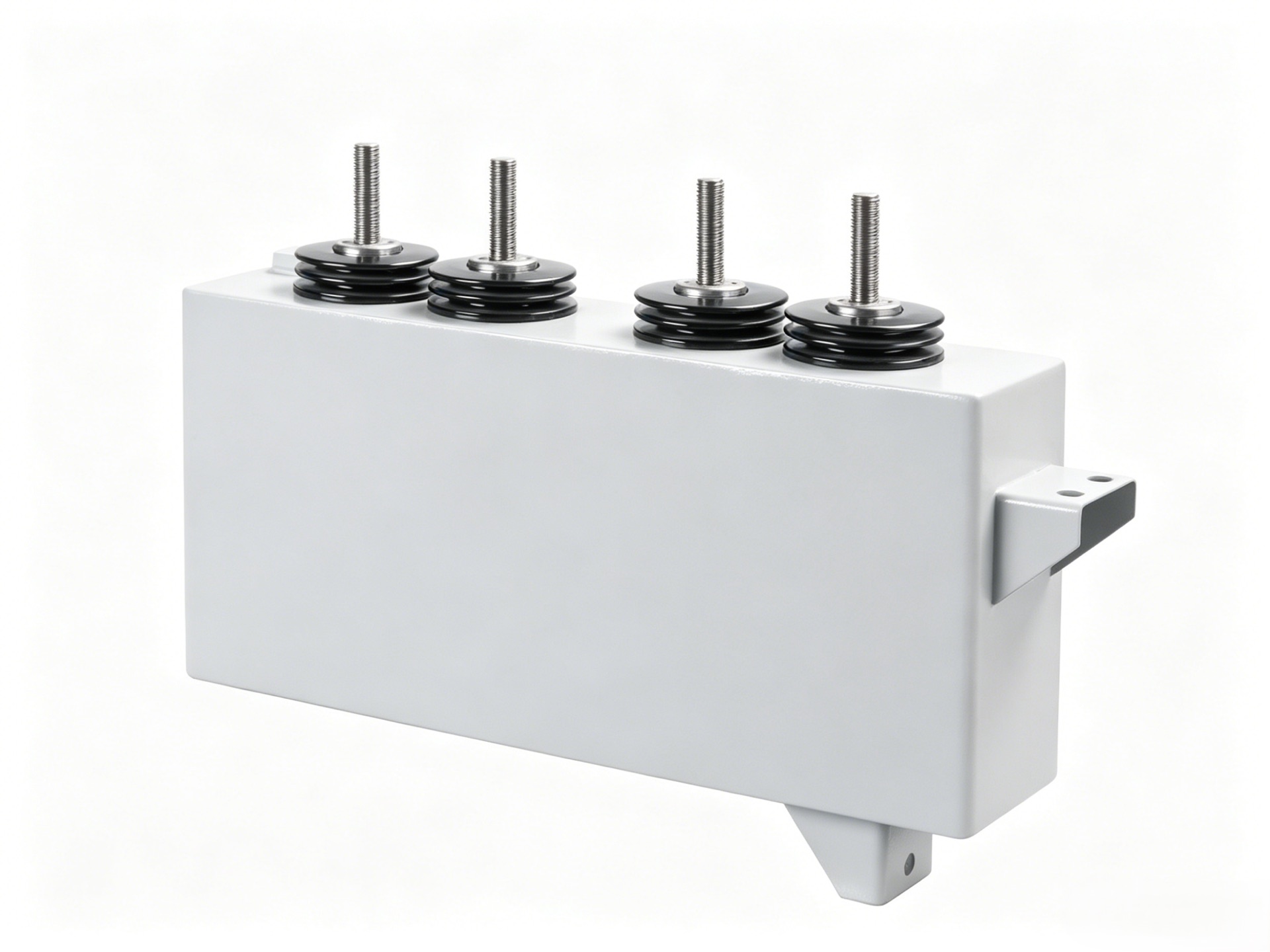

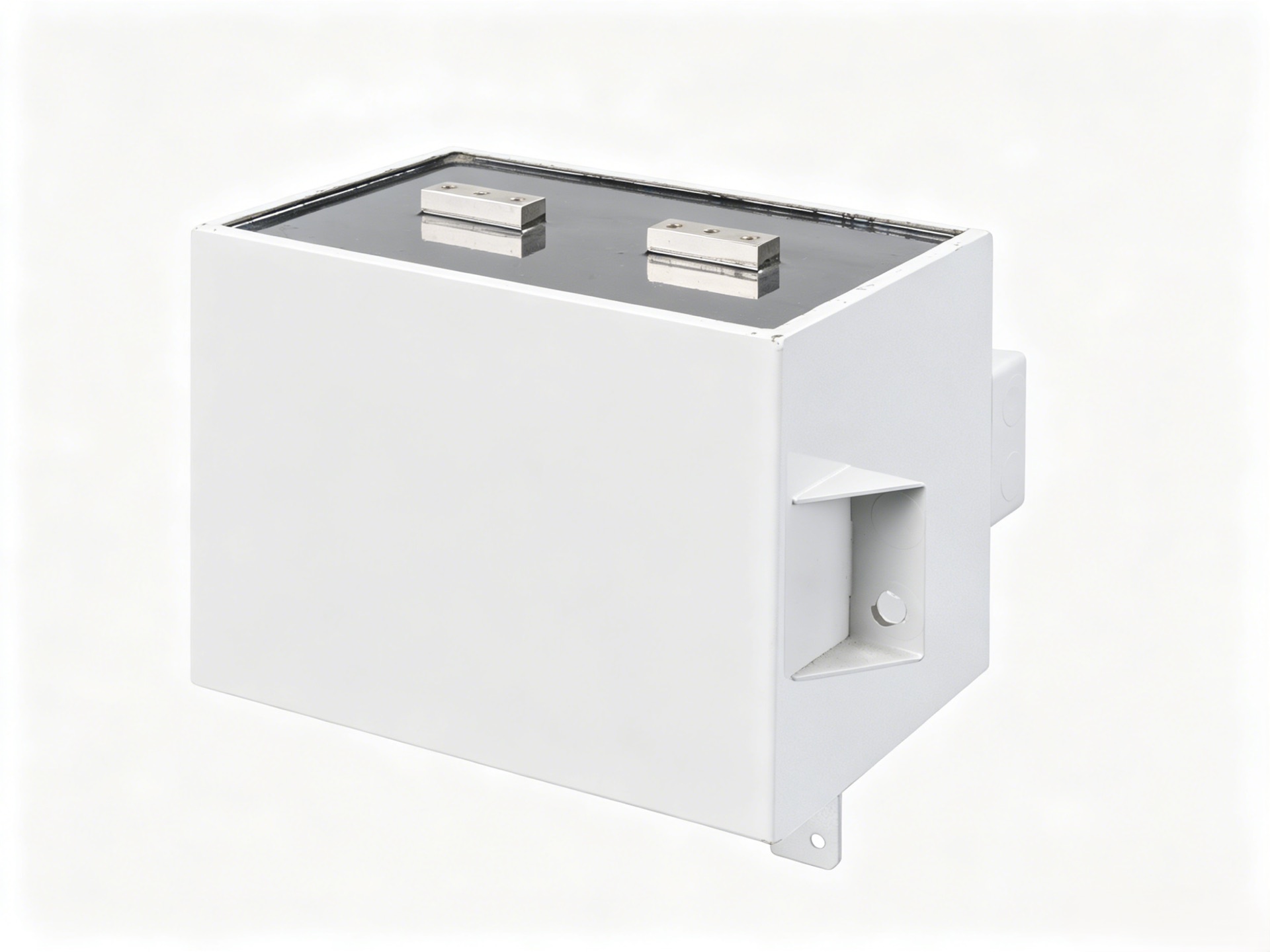

Product Models
| № | TYPE | Un (kV) | Ip (kA) | Cn (μF) | L (mm) | W (mm) | H (mm) | TERMINALS | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3.6-140 | 3.6 | 15 | 140 | 380 | 90 | 190 | 2 | Enquire |
| 2 | 3.6-115 | 3.6 | 15 | 115 | 300 | 200 | 220 | 4 | Enquire |
| 3 | 3.6-100 | 3.6 | 25 | 100 | 380 | 900 | 165 | 2 | Enquire |
| 4 | 3.6-220 | 3.6 | 25 | 220 | 300 | 90 | 400 | 4 | Enquire |
| 5 | 15-600 | 15 | 61 | 600 | 1410 | 668 | 7220 | 4 | Enquire |
Un (kV) — Rated VoltageIp (kA) — Peak CurrentCn (μF) — Nominal CapacitanceL (mm) — WidthW (mm) — ThicknessH (mm) — Height
